Understanding pinch valve dimensions and flanges ensures seamless integration into piping systems, particularly when choosing between DIN vs ANSI. The two are different but commonly used standards by organizations in engineering, manufacturing, and product design.
DIN was developed in Germany but widely adopted across Europe and parts of Asia. Meanwhile, ANSI standards, which originate from North America, are commonly used in the US, Canada, and many Latin American countries. This blog further explores the differences between the two, highlighting the key measurements and practical tips for optimal selection and maintenance.
DIN stands for “Deutsches Institut für Normung,” which translates to “German Institute for Standardization.” It covers different industries, including manufacturing, engineering, and construction. On the other hand, ANSI is known as the “American National Standards Institute,” covering a broad spectrum of industries, such as technology, safety, and manufacturing.

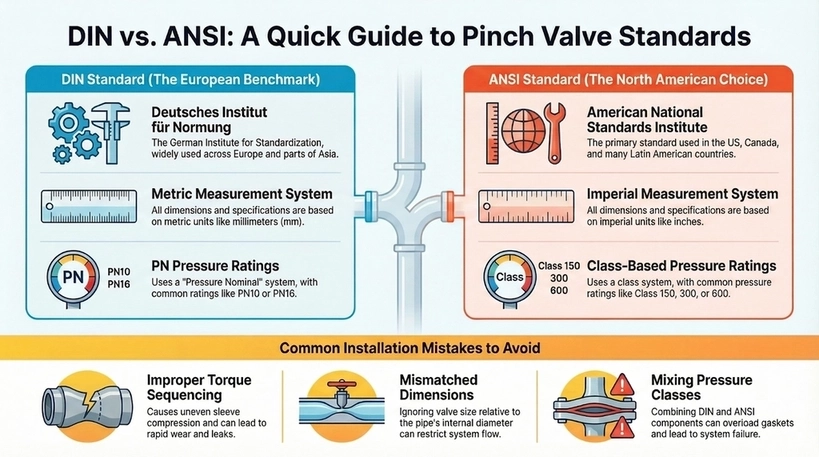

One of the common differences between DIN and ANSI standards is the measurement system. DIN are based on metric units, while ANSI uses inches, adhering to the imperial system. This significant distinction affects engineering specifications of pinch valves and flanges.
Another distinction is the pressure ratings, whereas DIN uses PN (Pressure Nominal) ratings while ANSI integrates a class-based pressure system. DIN standards utilize PN10 or PN16 ratings, while ANSI integrates classes like 150, 300, or 600. DIN roughly corresponds to ANSI but is not the same, usually resulting in slightly shorter valve face to face length—for instance, a PN16 flange measures about 230mm versus ANSI 150 valve dimensions’ 191mm.
When retrofitting systems, compare flanged ball valve dimensions with pinch valves for compatibility. While both follow similar engineering specifications, pinch valves have more compact designs. To prevent leaks, verify flange bolt patterns, such as eight 5/8-inch holes for an ANSI 150 4-inch flange, against DIN metric equivalents.
Common mistakes when installing pinch valves include improper torque sequencing, causing uneven sleeve compression and rapid wear. Ignoring pinch valve dimensions relative to pipe IDs can restrict flow, while axial misalignment beyond typical 1/8 inch and ANSI–DIN pressure class mismatches may overload gaskets and lead to failures in high-vibration conditions.

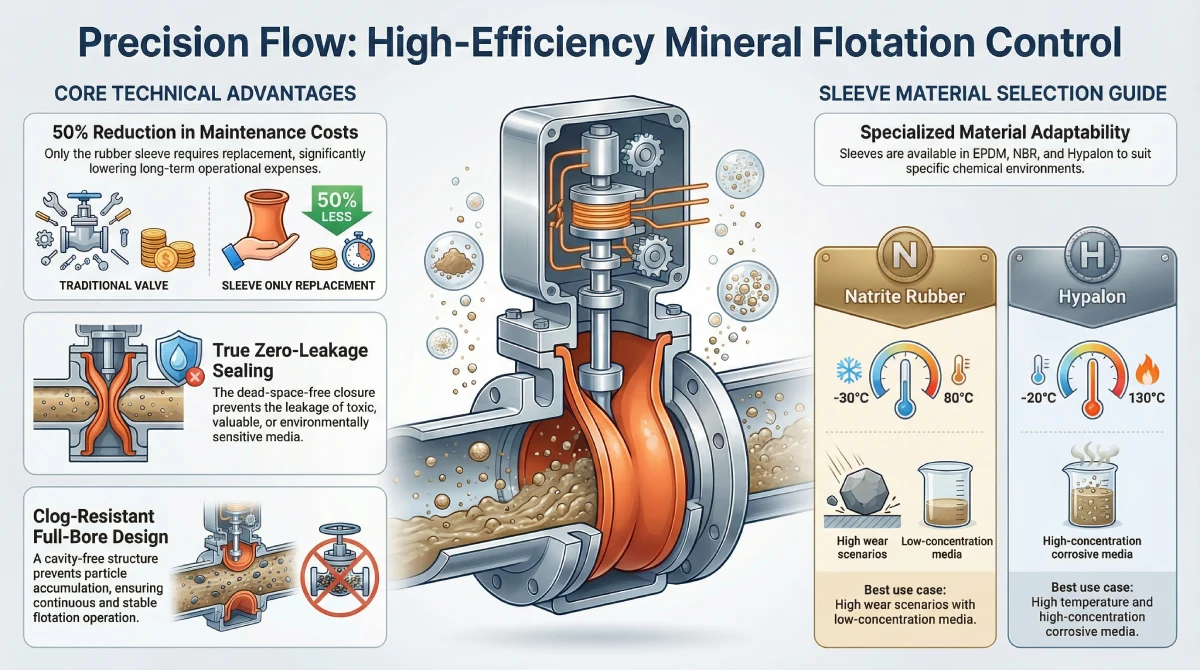

Moreover, when wondering how to replace a pinch valve sleeve, it starts with releasing the line’s pressure and isolating the valve. Then, remove the end caps, extract the old sleeve to check for any tears. Insert the new sleeve per specification, ensuring full-round alignment for bubble-tight shutoff, then reassemble with lubricated bolts torqued to 50-80 ft-lbs based on size. Make sure to test at operating pressure to confirm zero leakage.
Selecting between DIN and ANSI heavily relies on regional standards, measurement systems, and specific industry applications. By learning and understanding the distinction between the two will help avoid installation errors, ensure high durability of facilities, and maintain efficient overall performance.
Known as a top manufacturer worldwide, LIANKE offers a wide range of pinch valves and flanges that support DIN and ANSI standards. For standard sizes, delivery can be arranged in 2–3 days from stock while customized orders typically take 2–3 weeks depending on quantity and product type. Additionally, we offer technical support via email or video, and all products come with a 12-month warranty.
