Actuated valves provide automated control over the flow of liquids, gases, or other materials.
Their key function is to regulate the opening and closing of a valve based on external signals.
These signals trigger actuators, devices that convert energy into mechanical motion — allowing the valve to either open, close, or modulate the flow within a pipeline.
Actuated valves ensure efficiency, precision, and safety in complex systems, and are used across industries such as oil and gas, water treatment, manufacturing, and power generation.
An actuated valve is a type of valve that is operated by an actuator, a device that converts various forms of energy (such as air, hydraulic fluid, or electricity) into mechanical motion.
These valves automate the control of flow, reducing the need for manual intervention and ensuring accurate, repeatable positioning in industrial applications.
Valve actuation is crucial for optimizing system performance, improving safety, and minimizing downtime.
Whether using compressed air, hydraulic fluid, or electric power, actuated valves are designed to respond to specific input signals.
Actuated valves operate through the principle of valve actuation.
When an external signal is sent (via air pressure, hydraulic fluid, or electricity), the actuator converts that signal into movement.
The movement controls the valve’s position, either opening, closing, or adjusting the flow through the pipeline.
For example, in a pneumatically actuated valve, compressed air enters the actuator chamber, causing movement that either opens or closes the valve.
This rapid response is ideal for systems requiring frequent adjustments.
In contrast, an electric actuator valve uses electrical signals to control valve motion, which allows for precise, but slower, movements.
There are four primary types of actuator valves, categorized by the energy source used to control the valve: pneumatic, hydraulic, electric, and electro-hydraulic.
Beyond these, several other specialized valves also exist, including spring-actuated, manual-actuated, and solenoid-actuated valves, which offer unique advantages in specific scenarios.
Below is an overview of the major types:
A pneumatic actuator valve relies on compressed air to move the valve.
This is the most common type of valve used in industrial systems due to its fast response and cost-effectiveness.
| Pros | Cons |
| Low initial cost | Large and heavy, making installation challenging in confined spaces |
| High speed with a 100% duty cycle | Requires a pneumatic air supply, which is costly and needs maintenance |
| Simple operation and easy-to-repair | Less precise control due to air compressibility |
| Long-lasting in continuous-use environments |
A hydraulic actuator valve operates using pressurized fluids such as hydraulic oil to move the valve.
These valves are preferred for applications requiring significant force, such as in heavy machinery and large-scale industrial processes.
| Pros | Cons |
| Can deliver higher force compared to pneumatic actuators of the same size | Requires a hydraulic system, which is expensive and requires regular maintenance |
| High speed with a 100% duty cycle | |
| Simple to repair and operate | |
| More precise than pneumatic systems, due to the incompressibility of fluids |
An electric actuator valve uses an electric motor to drive valve movement, offering precise and automated control.
These valves are ideal for industries requiring fine-tuned adjustments over flow rates.
| Pros | Cons |
| Simple to install and maintain | Slower operation compared to pneumatic and hydraulic systems |
| Can log operational data for diagnostics and monitoring | Limited duty cycle (typically less than 30%) |
| Highly precise, allowing for exact control of flow | Fragile and not suitable for fail-safe applications |
Electro-hydraulic actuators combine the precision of electric actuators with the power of hydraulic systems.
They do not require a separate hydraulic supply system, making them a compact and self-contained solution.
| Pros | Cons |
| Fast-acting with 100% duty cycle | Expensive and complex to repair |
| Fail-safe capability and remote diagnostics available | |
| Accurate and highly customizable for field adjustments | |
| Requires no complex external hydraulic system |
Solenoid-actuated valves use electrical solenoids to control valve position — making them ideal for systems requiring rapid changes in flow.
| Pros | Cons |
| Highly responsive, ideal for automated systems | Limited to applications requiring quick but less precise control |
| Simple electrical operation |
In a spring-actuated valve, a spring mechanism automatically closes the valve when no external force is applied, ensuring fail-safe operation.
These are used in critical safety applications where immediate closure is necessary in case of a power failure or emergency.
| Pros | Cons |
| Essential for fail-safe operations, providing automatic closure | Limited to applications where quick closure is more important than precise control |
| Simple and reliable mechanism |
Manual-actuated valves are operated by hand, often using a handwheel attached to the valve stem.
These valves are best for applications where automated control is unnecessary or impractical.
| Pros | Cons |
| Cost-effective | Requires human intervention, unsuitable for high-speed or automated systems |
| Simple to operate and maintain |
Self-actuated valves use the pressure of the process fluid to control their position. These are commonly found in systems where maintaining constant pressure or temperature is critical.
| Pros | Cons |
| Requires no external power or manual intervention | Limited application, usually specific to pressure or temperature control systems |
| Ideal for applications requiring automatic flow regulation |
Actuated valves provide significant benefits in automation, safety, and efficiency.
Actuation valves reduce the need for manual intervention, ensuring consistency in operations.
They offer greater control, faster response times, and precise adjustments, improving the overall reliability of a system.
Actuated valves are used across a range of industries, including:
Actuated valves, with their variety of actuation methods, are essential to ensure efficient, reliable control across a range of industrial systems.
Lianke Valve Co., Ltd, established in 1982 as Wenzhou Yongzhong Chemical Machinery Plant, is a leading manufacturer of actuated valves, including:
Certified by API, CE, ISO, and TS, we adhere to international standards such as API, DIN, JIS, and GB.
With automated production lines, we ensure quality through ISO9001 compliance, offering ample inventory and swift service.
Committed to innovation and customer satisfaction, Lianke serves global markets with a passion for excellence and service.
Our dedication to quality and collaboration makes us a trusted partner in the valve industry.
Resources:
Valve Actuator Types for Industrial Process Control
Actuated Valve – Working Principle and Types
Understanding Actuated Valves: Definition, Types, and Applications
Industrial automation systems require valves that deliver precise flow control without compromising reliability in corrosive or abrasive media. A pneumatic control pinch valve excels as a modulating control valve, enabling precise flow to control pressure, temperature, or fluid levels. Using compressed air to gradually adjust the valve position allows smooth process control in mining, wastewater, […]
High pressure pinch valves, like PN16 pinch valve and class 150 pinch valve designs, involve a rugged and heavy-duty pinching mechanism in positioning the sleeve, resulting in an almost accurate and measurable flow of media. This kind of valve is popular and commonly used for long distance operations in mining tailings lines or oil sands, […]
Understanding pinch valve dimensions and flanges ensures seamless integration into piping systems, particularly when choosing between DIN vs ANSI. The two are different but commonly used standards by organizations in engineering, manufacturing, and product design. DIN was developed in Germany but widely adopted across Europe and parts of Asia. Meanwhile, ANSI standards, which originate from […]

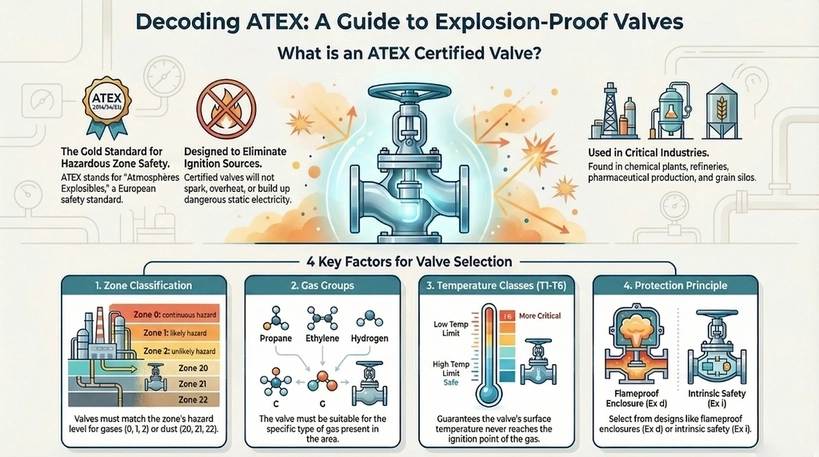

Selecting the appropriate explosion proof valve is essential for safety in industries that pose explosion risks. ATEX certified valves guarantee compliance with European standards, preventing ignition sources from heat, sparks, or static electricity. This blog explores key factors for choosing ATEX certified explosion proof valves that ensure overall operational safety, highlighting the entailed regulations and […]
