What is Valve Flow Coefficient (CV), and How to Calculate It?

Valve Flow Coefficient (Cv) is a measure of a valve’s capacity to allow liquid or gas to flow through it.

It’s technically defined as “the volume of water at 60°F (in US gallons) that will flow through a valve per minute with a pressure drop of 1 psi across the valve.”

You calculate Cv by measuring flow rates under standardized conditions, though most engineers use manufacturer-provided sizing calculators.

Understanding Valve Flow Coefficient (Cv)

In practical terms, Cv relates directly to the valve’s opening size. As a valve opens, its Cv increases until reaching maximum value when fully open (100% open Cv). For example, a 2-inch regulator might have a maximum Cv of 47, whereas a 3-inch regulator could reach 117.

You can think of Cv as the valve’s “flow personality”. Iit tells you exactly how much fluid can move through the valve under specific conditions. Engineers use this measurement to select valves that will operate efficiently at the required flow rates.

Why Cv Matters in Valve Selection

Selecting a valve with the appropriate Cv value is critical for system performance. A valve with too small a Cv will restrict flow and create excessive pressure drops. Choose one with a large a Cv, and you might get adequate control at lower flow rates.

Most manufacturers recommend selecting valves where your required Cv falls between 20% and 80% of the valve’s stem travel range. This ensures the valve operates in its most stable control region, providing optimal performance and longer service life.

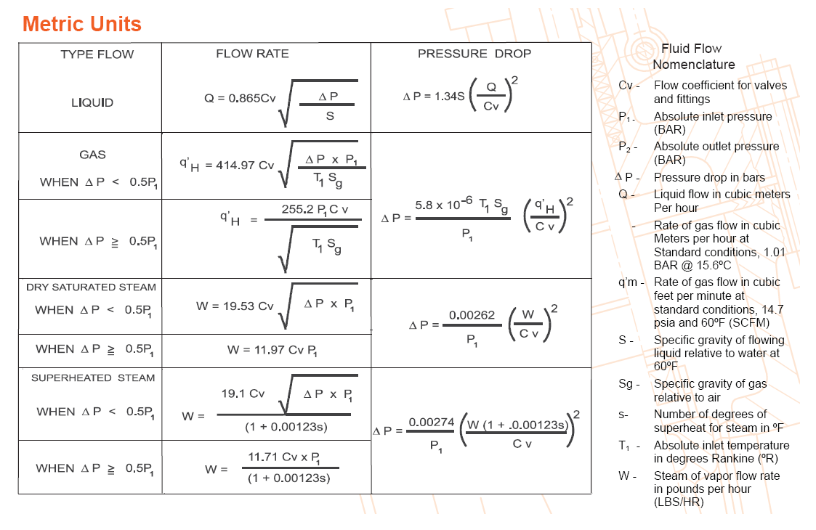

How to Calculate Valve Flow Coefficient

Determining the right Cv for your application requires considering several factors:

1. Operating pressure
2. Flow rate requirements
3. Media type (gas or liquid)
4. Temperature conditions
5. Pressure drop across the valve

Most valve manufacturers provide sizing calculators that help determine the appropriate Cv based on these parameters. These tools typically ask for specific gravity, flow rate, pressures, and temperature of your production media.

Flow Capacity and Valve Size Relationship

Valve size and flow capacity share a direct relationship, but they aren’t identical concepts. When selecting between valve options:

• If your calculated Cv is 14 for a valve with maximum Cv of 47, you’re at about 30% of capacity – good control range
• If your calculated Cv is 47 (maximum) for that same valve, you should select a larger valve to maintain control flexibility
• If your calculated Cv is 35, it would operate at about 74% capacity – still within the recommended range

Pressure Considerations in Valve Selection

When sizing valves, pressure is a fundamental consideration alongside Cv:

For Gas Applications:

• Above 300 psi: Use high-pressure control valves
• Below 300 psi: Standard low-pressure regulators typically suffice

For Liquid Applications:

• Above 500 psi: High-pressure control valves are necessary
• Below 500 psi: Lever-operated or pneumatic dump valves work effectively

Rubber Lined Diaphragm Valve

Rubber-lined diaphragm valve with FEP/PFA lining and EPDM diaphragm, suitable for PN0.6-2.5MPa and DN15–DN250 corrosive applications..

Explore Product & Solutions

Fluorine Lined Diaphragm Valve

Weir Type lined diaphragm valve with FEP/PFA lining and EPDM diaphragm, suitable for PN0.6-2.5MPa and DN15–DN250 corrosive applications..

Explore Product & Solutions

When to Use High-Pressure Valves for Low-Pressure Applications

Sometimes high-pressure valves are optimal for low-pressure systems. This typically occurs when the calculated Cv is very small (less than 3).

High-pressure stem-guided valves often come with multiple trim options of different sizes, allowing for precise flow control in low-flow applications. These valves have small Cvs—typically from 0.34 to 21—making them suitable for applications requiring fine control.

Adapting to Changing Conditions

Production conditions often change over time. When this happens, you may need to recalculate your Cv requirements. Quality control valves offer flexibility for these situations.If your recalculated Cv no longer matches your existing valve’s trim, many manufacturers allow you to swap the trim for a different size rather than replacing the entire valve. This adaptability helps maintain optimal performance without modifying your piping system.

But if you do need a new valve, visit our website to see your options. At Lianke Valve, we deal in everything from pinch valves to stainless steel options, with a commitment to delivering the highest-quality products worldwide.
