Why Ball Valve for Slurry Fails—and Better Options

Slurries pose risks in industrial piping as they blend liquids with abrasive solids that erode components rapidly. Although ball valves for slurry applications may seem ideal thanks to their quarter-turn operation that provides quick shut-off, it often experiences rapid wear when used in systems with debris or abrasive particles, leading to leaks or valve failure.

In this guide, we will delve into the working performance and the problems with ball valves in slurry that lead to frequent failures and increased costs and downtime—while providing you with better options for it.

Reasons Why Ball Valve for Slurry Fails

Blockage by Debris or Sediment Accumulation

Clogging in ball valves occurs when solid particles settle in the cavity between the ball and body during partial closure, forming blockages and causing poor operation and internal leakage over time. These problems with ball valves in slurry increase with high-solid content , where media attaches to valve seats, preventing full shutoff and risking system overpressure.

Instead, install a Y-strainer or other pre-filtration equipment upstream to trap solid debris before it reaches the valve. It is also necessary to conduct regular flushing and maintenance of the valve area for long-term and stable operation.

Design Flaws Exposed by Abrasive Flows

Ball valves depend on soft seats that deform when in contact with slurries, leading to bypass and erosion. Unlike a full port flow valve, residual media trapped in the ball pocket creates dead zones prone to corrosion. For pulsating flows common to pumps, vibrations worsen seat wear, making ball valves unreliable for long-term operation in mining, wastewater, or mineral processing.

To minimize these, choose stainless steel ball valves (such as 304 or 316 grades), like those in LIANKE that offer fire prevention and anti-static features with smooth, low-torque performance, or special alloy ball valves depending on the specific media features. A strainer or filter could also be installed to reduce contamination of solid particles and protect the valve internals.

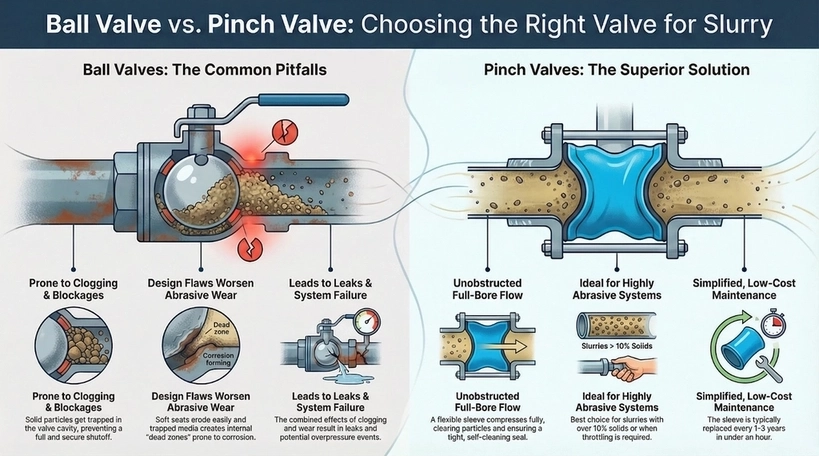

Pinch Valve vs Ball Valve against Slurries

Pinch valves remove particles by compressing a flexible sleeve fully across the bore, ensuring tight shutoff without obstructing flow. In contrast, using ball valves in slurry systems can be tough as they suffer from clogging, uneven wear, and leakages. This makes pinch valves an ideal full port flow valve with minimal turbulence, outperforming ball valves.

When to Choose a Pinch Valve Over Other Valves?

Select pinch valves over other valves when handling slurries above 10% solids, high abrasives, or when a throttling operation is needed. Standard models operate to 250°F, with special versions from −100°F to 550°F. Pressure ratings vary by size (15–100 psig), with special designs up to 300 psig. However, avoid pinch valves if they involve high-pressure isolation that exceeds sleeve ratings; otherwise, their self-cleaning action outperforms seated valves prone to buildup.

Moreover, the pinch valve maintenance schedule depends on the application, media type, cycling frequency, and operating conditions. Typically, it lasts 1-3 years with sleeve inspections every 3-6 months. Abrasive materials reduce their lifespan, but replacements may only apply to the sleeves and can be done in under an hour with no special tools needed.

Conclusion

Selecting the right valve is vital to ensure system efficiency, safety, and durability. Ball valves are considered less ideal compared to pinch valves against slurries and abrasive media due to clogging, wear, and leakage concerns. However, they may be minimized by choosing high-quality ball valves like special alloy or stainless steel.

Regardless, LIANKE offers a variety of stainless steel ball valves and pinch valves, designed according to international standards, including visual inspection, sealing performance, operational performance, and pressure resistance to ensure their safety, reliability, and normal operation.
