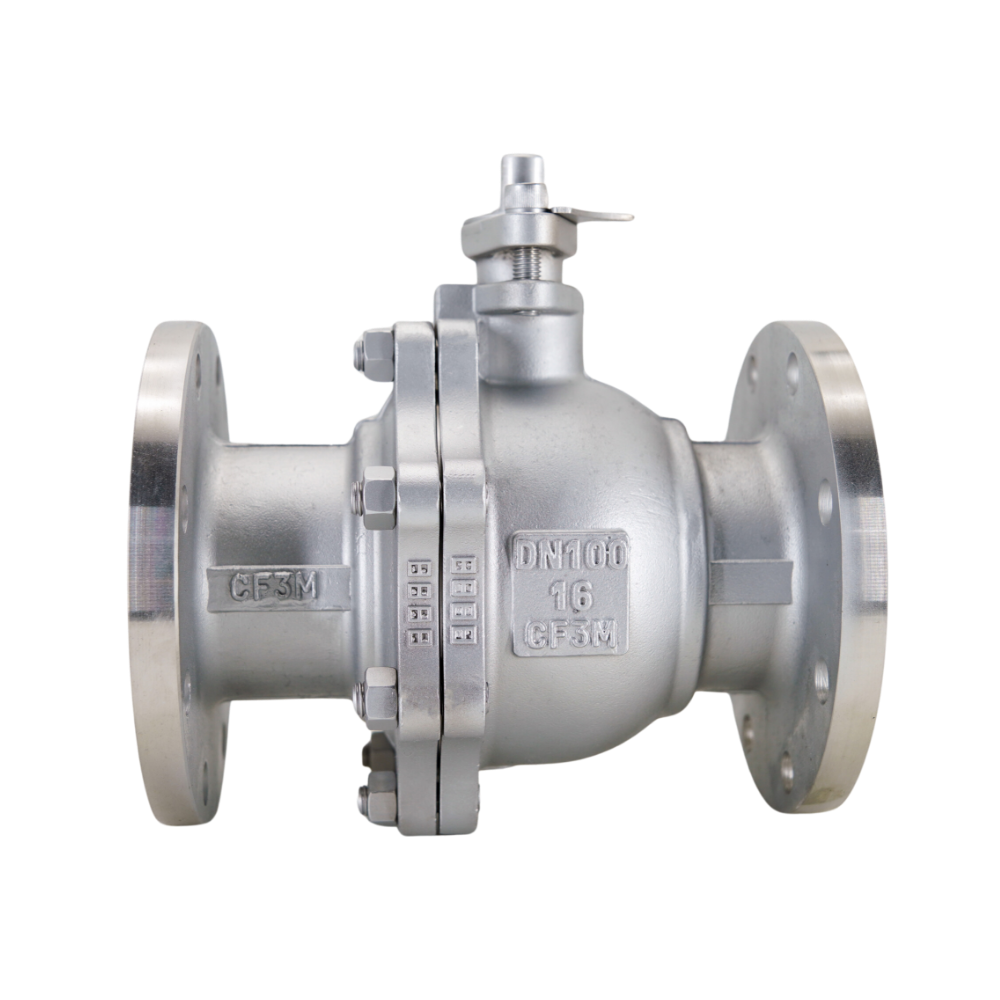

Stainless Steel Ball Valve

PARAMETER

ADVANTAGE

Key Features

Operation Mechanism

The opening and closing of the valve are driven by the valve stem, allowing for smooth rotational movement of the ball.

Fluid Regulation and Control

This valve can be used for precise fluid regulation and control, making it suitable for various applications.

Hard Seal V-Type Ball Valve

Equipped with a V-type core and a surfacing carbide metal valve seat, this design provides strong shear force.
Ideal for handling media containing fibers, small solid materials, and other challenging substances.

Multi-Pass Functionality

The multi-pass ball valve allows for flexible control of medium confluence, shunting, and flow switching.
Capable of closing any channel while connecting the other two channels, enhancing operational flexibility.

Installation Guidelines

It is recommended that this type of valve be installed horizontally within the pipeline to ensure optimal performance.

Types of Ball Valves

The stainless steel flanged ball valves are available in various driving modes:

Pneumatic Ball Valve: Operated using compressed air.
Electric Ball Valve: Controlled by electric actuators.
Manual Ball Valve: Operated manually through a handle or lever.

Material Types

The valves are constructed from various materials to suit different applications:

WCB (Carbon Steel)
CF8 (Stainless Steel)
CF3 (Low Carbon Stainless Steel)
CF8M (316 Stainless Steel)
CF3M (Low Carbon 316 Stainless Steel)

Main parts and materials

Name/Material	WCB	CF8	CF3	CF8M	CF3M
Body	WCB	CF8	CF3	CF8M	CF3M
Ball/Stem	WCB	CF8	CF3	CF8M	CF3M
Seat	PTFE / RPTFE/PPL
Bolt/Nut	B7/2H	B8/8	B8/8	B8M/8M	B8M/8M

Technical Specification

Design&Manufacture Standard	GB/T12237	API 6D
FTF Dimension Standard	GB/T12221	ASME B16.10
Flange standard	HG/T20592	ASME B16.5
Inspection & Test Standard	HG/T13927	API 598

The main connection size

DN (mm	L	D	D1	D2	b	Z-Φd	H	W
Q41F-16C Q41F-16P Q641F-16C Q641F-16P BQ41F-16C BQ941F-16P
15	130	95	65	45	14	4φ14	78	130
20	130/140	105	75	55	14	4φ14	84	130
25	140/150	115	85	65	14	4φ14	95	160
32	165	135/140	100	78	16	4φ18	150	160
40	165/180	145/150	110	85	16	4φ18	150	180
50	203/200	160/165	125	100	16	4φ18	170	200
65	222/220	180/185	145	120	18	4φ18	195	240
80	241/250	195/200	160	135	20	8φ18	215	240
100	305/280	215/220	180	155	20	8φ18	250	280
125	356/320	245/250	210	185	22	8φ18	265	300
150	394/360	280/285	240	210	24	8φ23	270	300
200	400/457	335/340	295	265	26	12φ23	330	350
250	533	405	355	320	30	12φ26	450	400
300	610	460	410	375	30	12φ26	540	500

Ball valve , opening and closing parts (ball) driven by the valve stem, and around the axis of the ball valve for rotating movement of the valve. It can also be used for fluid regulation and control, the hard seal V-type ball valve with V-type core and surfacing carbide metal valve seat has a strong shear force, especially suitable for containing fiber, small solid materials and other media. The multi-pass ball valve in the pipeline can not only flexibly control the medium confluence, shunt, and flow switch, but also can close any channel and make the other two channels connected. This type of valve shall generally be installed horizontally in the pipeline. Ball valve according to the driving mode is divided into: pneumatic ball valve, electric ball valve, manual ball valve.
