How Y Strainers Work: Understanding the Principle and Components

A Y strainer filter acts like a silent worker that keeps your pipeline clean and debris-free. It traps unwanted particles and prevents damage to your system. To understand how it can benefit your pipeline, here’s a quick guide on how its components function as well as proper maintenance for long-term use.

The Y Strainer Working Principle Explained

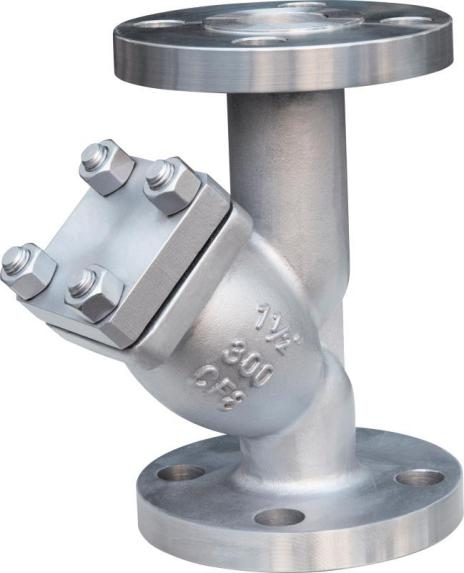

The strainer is named because of its body, which is shaped like a “Y”. It functions by forcing fluids through a mesh (the most common type) or a perforated metal screen, which then captures any debris before it can damage other system parts like valves, pumps, or turbines.

Here’s a more detailed description of how Y strainers filter debris in pipelines:

1. Flow entry – Fluids (liquid, gas, or steam) enter the strainer body.
2. Filtration – They flow through the mesh screen, which then traps any rust, sand, or other solids too large to pass through.
3. Discharge – Clean fluid exits through the outlet.
4. Cleaning – The screen can then be removed, cleaned, and reinstalled, or flushed through the blow-off connection.

Key Components of a Y Type Strainer

The following parts of a Y strainer work together to keep your pipelines protected:

• Body – The housing that contains all the parts of the strainer.
• Mesh Screen – The crucial filtering element that captures debris.
• Cover or Cap – Provides access to the screen for cleaning.
• Blow-off Connection/Valve or Drain Plug – Enables the flushing of trapped particles without the need for full unit disassembly.
• Gasket – Seals the cover to prevent leakage.

Tips for Maintaining and Cleaning Y Strainer Filters

Any buildup over time may increase pressure loss and reduce system efficiency. That’s why proper maintenance is needed to ensure that the strainer continues to perform well.

Here are some tips to keep yours running smoothly:

1. Monitor pressure changes – Any sudden pressure drop across the strainer may indicate debris buildup. You can add pressure changes before and after the unit to catch it early.
2. Schedule regular checkups – Set a cleaning schedule, depending on your system’s workload. If there’s heavy debris flow, a weekly checkup can help. Otherwise, monthly may be enough.
3. Clean the screen carefully – Avoid using sharp tools that can damage it.

Preguntas frecuentes

1. Can I use Y strainers for steam or gas?

Yes. With the correct material and pressure rating, they can work with steam, gas, or liquids.

2. How do I choose the right mesh size?

Consider the type and size of debris you need to capture. If the mesh is too small, it may lead to clogging. If it’s too big, then it would let unwanted particles through.

3. What materials are Y strainers made of?

They’re commonly made from stainless steel, carbon steel, or iron.

Keep Systems Efficient With a Y Strainer Filter

A Y strainer filter is a useful tool for protecting components and extending equipment life.
