Pinch Valve Troubleshooting Tips for Common Valve Problems

The most effective way to resolve pinch valve issues is to identify the root cause early—whether it’s sleeve wear, actuation failure, or leaks—and apply targeted troubleshooting steps to restore performance.

Pinch valves are favored for their durability and simplicity in handling slurries, abrasive materials, and corrosive fluids.

But like any component, they can develop problems over time.

By understanding how to recognize and troubleshoot these issues, operators can extend the life of the valve and avoid costly system downtime.

This guide to pinch valve troubleshooting outlines the most common issues, their causes, and practical steps to fix or prevent them.

Pinch Valve Problems and Solutions

1. Valve Fails to Open or Close Properly

A common pinch valve problem is that the sleeve doesn’t fully open or close. This can lead to reduced flow or failure to stop the fluid entirely.

Possible Causes:

• Inadequate air pressure in pneumatic systems
• Worn or collapsed elastomer sleeve
• Valve not sized correctly for system pressure
• Obstructions inside the sleeve


Troubleshooting Steps:

• Verify that the compressed air supply meets the manufacturer’s pressure requirements.
• Inspect the sleeve for bulging, cracking, or fatigue.
• Clear any blockages inside the valve using appropriate flushing procedures.
• Review system pressure and valve specs to ensure compatibility.


If the issue persists after checking these factors, consider replacing the sleeve or consulting with the pinch valve supplier to assess whether a different model is more appropriate for the application.

2. Leakage During Operation

Pinch valves are known for their tight shut-off capability. If you notice leaks, especially when the valve is closed, the most likely culprit is the sleeve.

Possible Causes:

• Damaged or punctured sleeve
• Incorrect installation
• Excessive system pressure exceeding the valve’s limit
• Worn-out sleeve material incompatible with the process fluid


Pinch Valve Troubleshooting Tip:

• Inspect the sleeve thoroughly for visible damage or soft spots.
• Ensure that the valve is installed in the proper orientation and that flanges are aligned correctly.
• Confirm that pressure ratings are within the valve’s design parameters.
• Consider using a more chemically resistant or abrasion-tolerant sleeve material for aggressive applications.

3. Air Pressure Loss in Pneumatic Systems

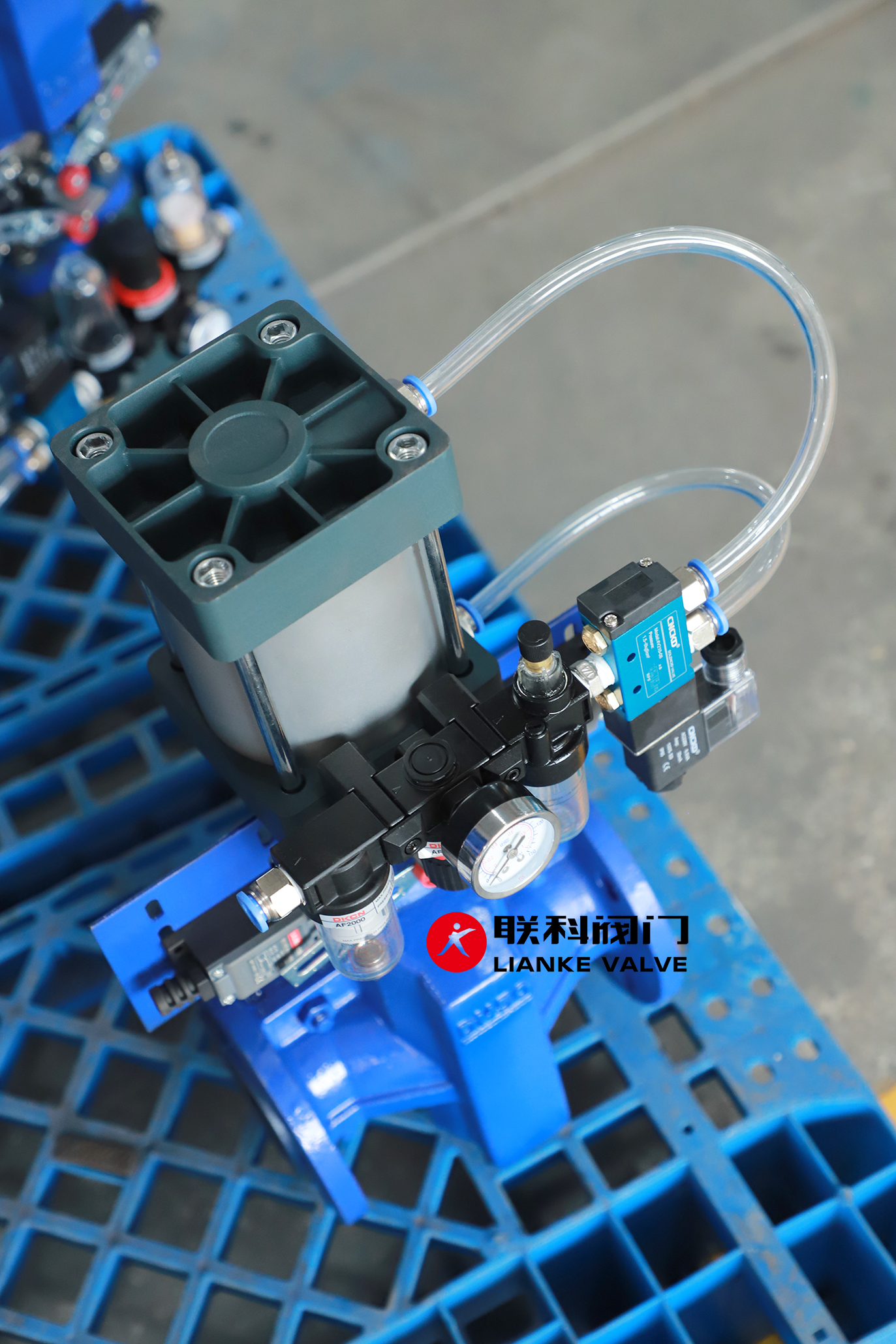

In pneumatic pinch valves, proper operation depends on maintaining consistent air pressure. If the valve isn’t responding properly or is slow to actuate, there may be an air pressure issue.

Possible Causes:

• Leaks in the pneumatic line
• Worn or damaged air diaphragm or actuator
• Malfunctioning solenoid valve


Troubleshooting Tips:

• Inspect the air lines and connections for leaks or cracks.
• Test the actuator or diaphragm for wear or failure.
• Check the solenoid valve to ensure it is opening and closing correctly.


Regularly scheduled checks on your pneumatic control system will help maintain consistent valve function and prevent unexpected actuation failures.

4. Excessive Sleeve Wear or Early Failure

Sleeve wear is a normal part of pinch valve operation, but if it’s happening too frequently, it’s a sign that the system conditions may be putting undue stress on the sleeve.

Common Causes:

• High levels of abrasion from slurry or solid particles
• Operating the valve in a throttled position for extended periods
• Using the wrong sleeve material for the process fluid


Pinch Valve Troubleshooting Tip:

• Use a full-port pinch valve design to reduce abrasion caused by high-velocity flow.
• Avoid using pinch valves for throttling unless the design supports it.
• Select a sleeve material rated for abrasion resistance or chemical compatibility based on your application.


Many pinch valve manufacturers offer specialized sleeves for different conditions, such as natural rubber for general abrasion or EPDM for chemical resistance.

5. Vibrations or Noisy Operation

Unusual noise or vibration may point to turbulence, improper sizing, or unsupported piping near the valve.

Likely Causes:

• The valve is too small for the flow rate
• Sleeves not fully opening due to low pressure
• Unsupported pipes transmitting vibration


Fixes:

• Recalculate flow rates to ensure the valve is appropriately sized.
• Adjust the pneumatic pressure to allow full sleeve expansion.
• Add pipe supports to stabilize the system and minimize movement.


Reducing vibration not only extends valve life but also protects adjacent components from premature wear.

Best Practices for Avoiding Pinch Valve Problems

Preventive maintenance is the most effective approach to minimizing valve issues. Here are some general pinch valve troubleshooting best practices:

Inspect regularly: Routine inspection of sleeves, air systems, and fasteners can help catch small problems before they escalate.

Track sleeve life: Keep records of how long each sleeve lasts in specific applications to anticipate when replacements are due.

Choose the right valve type and material: Work with experienced pinch valve manufacturers to select the right valve configuration for your operating conditions.

Train personnel: Ensure operators understand how pinch valves function and how to recognize early signs of trouble.

Final Thoughts: Pinch Valve Troubleshooting Tips

Pinch valves are robust and simple, but even they require occasional attention to stay in top shape.

From sleeving issues to actuation problems, being proactive with pinch valve troubleshooting ensures reliable performance and minimizes unplanned downtime.

With the right maintenance routine and component selection, pinch valves can serve as low-maintenance flow control solutions even in the harshest environments.
