Y-Strainer
Y-strainer is also known as a decontamination device and filter valve. It's an indispensable device to transfer medium in ductwork. Its role is filter mechanical impurities in media. This can prevent fittings in pipeline from wear and clogging by filtrating rust, sand in sewage and rigid granules in liquid. The impurity will be blocked when liquid flow into cartridge filter which is equipped with certain specifications of rosebox. The clean filtrate will discharge from the export filter. The filter cartridge can be removed when needs clean. So it's convenient to maintain.

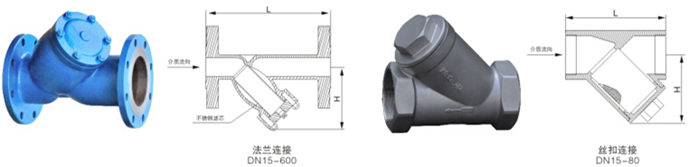

DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | |
Size | L | 125(65) | 150(79) | 160(90) | 180(105) | 195(118) | 215(218) | 250(165) | 285(190) | 305 | 345 |
H | 60(44) | 70(53) | 70(65) | 75(70) | 90(78) | 105(80) | 150(80) | 175(120) | 200 | 205 | |
DN | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| |
Size | L | 385 | 487 | 545 | 605 | 660 | 757 | 850 | 895 | 1070 |
|
H | 260 | 300 | 380 | 410 | 480 | 540 | 580 | 645 | 780 |
| |
It is suitable 0.25~2.5MPa,150LB,the data of bracket is threaded connection Y-strainer. |
DN | 15 | 20 | 25 | 32 | 40 | 50 | |
Size | L | 147 | 190 | 200 | 217 | 245 | 279 |
H | 80 | 110 | 110 | 115 | 130 | 145 | |
DN | 80 | 100 | 125 | 150 | 200 | 250 | |
Size | L | 357 | 455 | 495 | 520 | 640 | 700 |
H | 210 | 270 | 288 | 320 | 395 | 390 | |
It is suitable 6.3MPa,600LB |
DN | DN15-DN600 | Connection type | Flange, BW, SW, Thread, Clamp |
Body material | CS,SS | Flange pressure | 0.25~6.3MPa(150-600LB) |
Filter material | SS | Flange sealing face | FF,RF,M,FM,RJ,T,G |
Filter precision | 10-500MESH | Bracket material | PTFE,NBR, Metal winding |
Lianke valve Co.,Ltd fomerly called Wenzhou city yongzhong chemical machinery plant,founded in 1982 year, the core products are Pinch Valve, Fluorine Lined Valve & Strainer. We successively qualified by the API, CE, ISO, TS certification. Strictly according to the API,DIN,JIS,GB standard to produce the products. Becuase of the quality is very steady and competitive advantage price, our products has been accepted by the Europe, America, South africa, Middle east, South america & Southeast asia. Do hope more and more clients establish long term and steady business relations with us to achieve mutual profit.
