Stainless steel EPDM DN25 pneumatic pinch valve

Stainless steel EPDM DN25 pneumatic pinch valve

Stainless steel EPDM DN25 pneumatic pinch valve

Material
cast Iron,cast steel, stainless steel
Pressure
Low Pressure
Lead_Time
1 - 10(Pieces):20(days),>10(Pieces):Negotiable(days)
shipping
Sea freight
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Place of Origin:Zhejiang, China
Brand Name:Lianke
Model Number:GJ841X-I
Application:Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid, Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid
Temperature of Media:≤80℃
Power:Pneumatic
Media:Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid
Port Size:DN25~DN300
Structure:pinch valve
Standard or Nonstandard:Standard
Body material:cast Iron,cast steel, stainless steel
Standard:API, DIN, JIS, GB
Connection:Flange
Certificate:ISO9001:2008 TS,CE,API
sleeve material:Natural rubber, EPDF, NBR, FPM, IIR
Suitable temperature:≤80℃
keywords:pneumatic pinch valve
Product name:pneumatic pinch valve

Stainless steel EPDM DN25 pneumatic pinch valve


Product Description

Product Details:

Body materialAluminium alloy,Ductile Iron,cast iron,cast steel, stainless steel
SleevedNatural rubber, EPDM, NBR, FPM, IIR
MediumSlurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid
Suitable temperature≤80℃
PressurePN10,PN16,150LB, 10K
StandardAPI, BS, DIN, JIS, GB
OperatedPneumatic / Air-operated
MOQ/Payment1PC / TT or LC
Lead time

7days

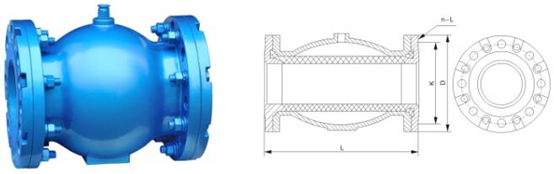

1- Connection size(mm)

Size (DN)

L

H

D

K

n-L

40

150

40

145

110

4-18

50

1 80

60

160

125

4-18

65

1 80

60

180

145

4-18

80

220

75

195

160

4-18

100

280

95

215

180

8-18

125

345

120

245

210

8-18

150

414

145

280

240

8-23

200

550

182

335

295

8-23

250

680

229

390

350

12-23

300

820

278

440

400

12-23

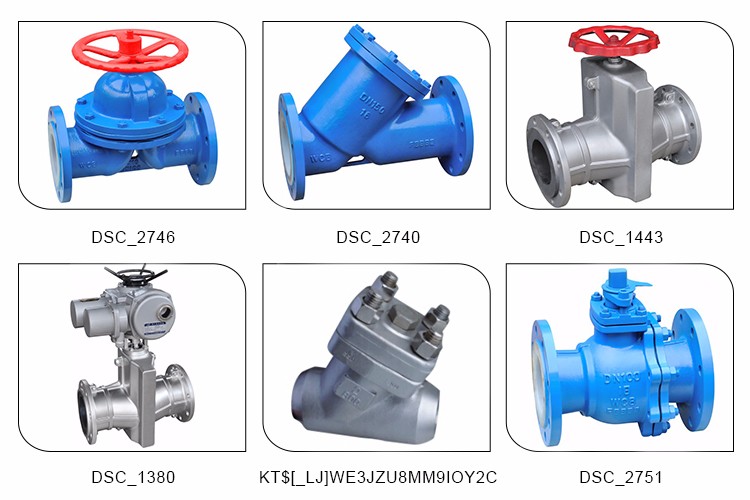

Related Products



Company Information

Lianke valve Co.,Ltd  fomerly called Wenzhou city yongzhong chemical machinery plant,founded in 1982 year, the core products are Pinch Valve, Fluorine Lined Valve & Strainer. We  successively qualified by the API, CE, ISO, TS certification. Strictly according to the API,DIN,JIS,GB standard to produce the products. Becuase of the quality is very steady and competitive advantage price, our products has been accepted by the Europe, America, South africa, Middle east, South america & Southeast asia. Do hope more and more clients establish long term and steady business relations with us to achieve mutual profit.
