fluorine lining butterfly valve

Home  > fluorine lining butterfly valve  >

Stainless steel butterfly valve fluorine lining butterfly valve

Stainless steel butterfly valve  fluorine lining butterfly valve

Stainless steel butterfly valve fluorine lining butterfly valve

Material
ductile iron, cast iron,cast steel, stainless steel
Pressure
Low Pressure
Lead_Time
1 - 10(Pieces):20(days),>10(Pieces):Negotiable(days)
shipping
Sea freight
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Type:Butterfly Valves
Place of Origin:Zhejiang, China
Brand Name:Lianke
Model Number:D371F
Application:chemical,petroleum,medicine,fertilizer,colliery etc
Temperature of Media:≤180℃
Power:Manual
Media:water,acid,oil,alkaline, corrosion medium
Port Size:DN40-DN1200
Structure:BUTTERFLY
Design standard:GB/T12238 GB/T12221
Structure length:ASME B16.10 JISB2002
Flange size:HG20592-97 ANSI16.5A
Connection type:Flange or butt clamp
Nominal pressure:0.6~2.5MPa, 150LB, JIS10K
Pressure test:GB/T13927-92 API598
Valve body/disc:ductile iron, cast iron,cast steel, stainless steel
Lining:FEP(F46),PTFE(F4),PFA,PO,PE
Application medium:water and corrosive fluid
Application temperature:100℃~~200℃(According to lining material)
Video Description

Stainless steel butterfly valve fluorine lining butterfly valve

Product Description

Products details

Body material

ductile iron, cast iron,cast steel, stainless steel

Lined material

FEP(F46),PTFE(F4),PFA,PO,PE

Pressure

PN10,PN16,150LB,10K

Standard

ANSI B 16.5A, DIN, BS, JIS, GB

Pressure test

API1598

Application medium

water,acid,oil,alkaline, corrosion medium

Application temperature

≤180

Operation

Manual, Pneumatic, Electric

MOQ/Payment

1PC / TT or LC

Lead time

7days


Related Products

Company Information

LIANKE VALVE CO.,LTD  started  since 1982, manufacturing and supplying strainers,pinch valves,lined valves with CE certification, providing the company's customers with access to qualified products and an ISO 9001:2015 quality level resulting in approved valves and strainers in the market.



Pinch Valves are cost effective solutions for abrasive and corrosive installations in industrial process plants.

Strainers are effective solution for the mechanical removal of unwanted solids, or removing impurities in the medium to protect the normal use of valves and equipment.

Fluorine lined valves are suitable for chemical and corrosion resistant conditions.





Product range :

1) Pinch valves

2) Fluorine lined valves

3) Strainers (Y type strainer, basket strainer, duplex basket strainer, T type strainer, bag strainer, etc.)



Application scope :

 abrasive or corrosive slurries, muddy sediment, silty  liquid powders or coarse substances, irrigation, paper coating, refining, petroleum, chemical industry, metallurgy, electricity, medicine, chemical fertilizer, phosgene (highly toxic), wastewater treatment, etc .



Certificate

History show

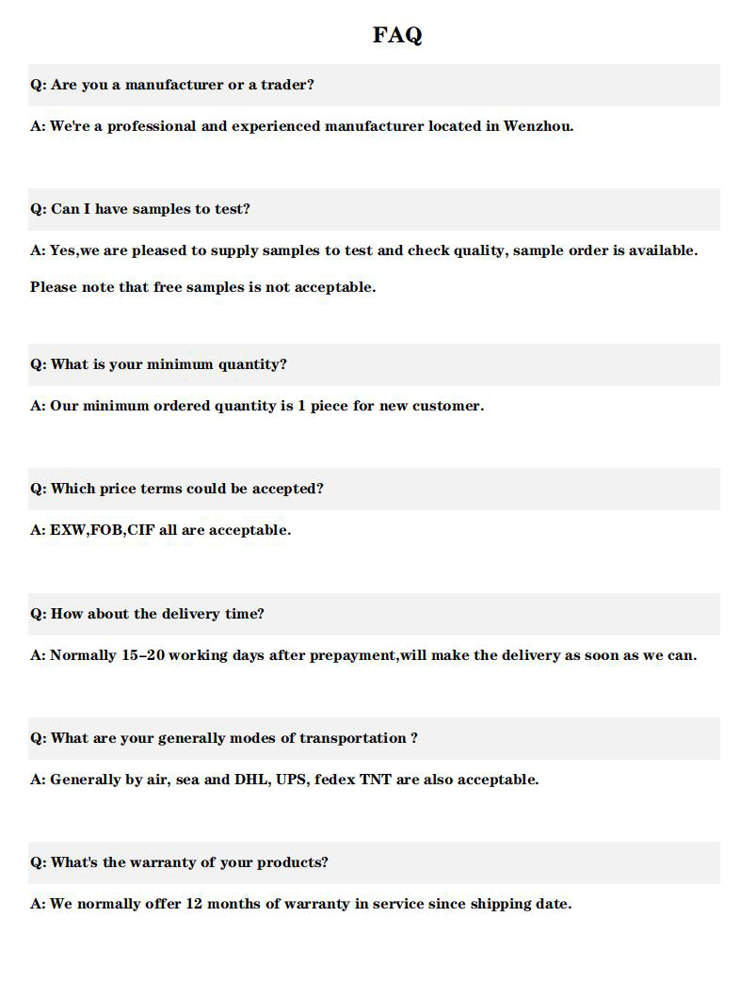

FAQ



Contact Us

This product works in most situations. It is ideal for home theater movies, education, conference room presentations, public displays, outdoor movies, etc. This product is less likely to be affected by chemicals. The product is designed to be flexible, suiting the requirements of any space. It can be cut to the specific size and ensures that volumes are kept to a minimum. This product is less likely to be affected by chemicals.
Lianke Valve Co.,Ltd. is committed to providing the highest level of service for you. Our friendly and customer-focused employees are always pleased to help you with any questions you might have.
