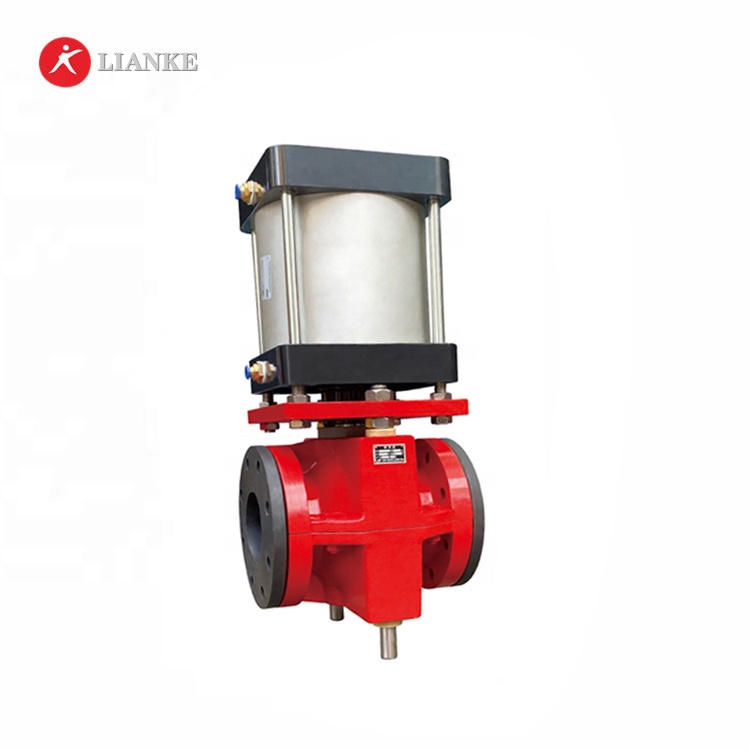

pneumatic pinch valve for abrasive and corrosive medium

pneumatic pinch valve for abrasive and corrosive medium

pneumatic pinch valve for abrasive and corrosive medium

Size
DN32~DN200
Material
wcb,cast Iron,cast steel, stainless steel
Pressure
Low Pressure
Lead_Time
1 - 10(Pieces):20(days),>10(Pieces):Negotiable(days)
shipping
Sea freight
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Type:BALL VALVES, Butterfly Valves
Place of Origin:Zhejiang, China
Brand Name:Lianke
Model Number:GJ941X
Application:oil,chemical,food,power,ore plant,sewage treatment
Temperature of Media:≤80℃
Power:Pneumatic
Media:Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid
Port Size:DN32~DN200
Structure:Shutoff
Product name:pneumatic pinch valve for abrasive and corrosive medium
Body material:Aluminium alloy,Ductile Iron,cast iron,cast steel,wcb, stainless steel
Standard:API, DIN, JIS, GB
Connection:Flange
Certificate:ISO9001:2008 TS,CE,API
Medium:Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid
sleeve material:Natural rubber, EPDM, NBR, FPM, IIR
Suitable temperature:≤80℃
Video Description

pneumatic pinch valve for abrasive and corrosive medium

Product Description

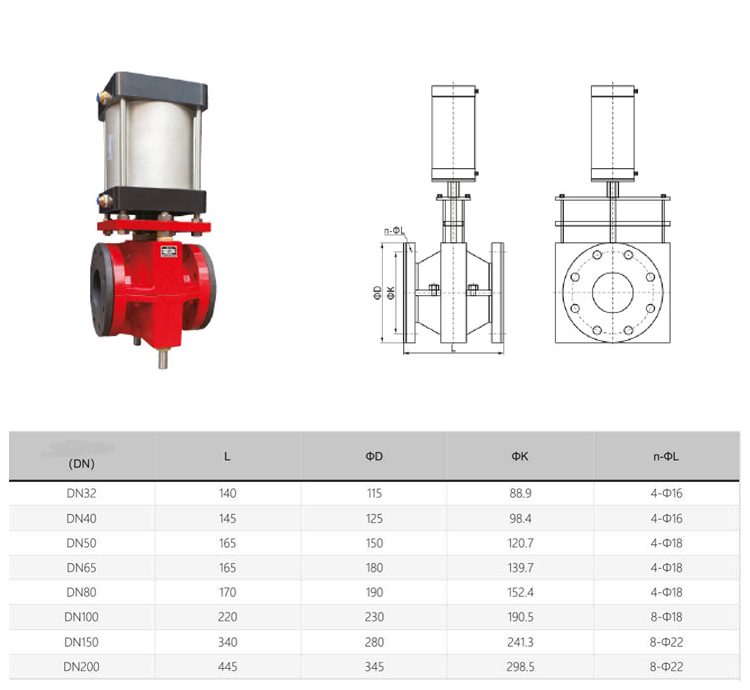

Product details

Body material Aluminium alloy,Ductile Iron,cast iron,cast steel,wcb, stainless steel
Standard API, DIN, JIS, GB
Connection Flange
Certificate ISO9001:2008 TS,CE,API
Medium Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid and corrosive medium.
Sleeve Natural rubber, EPDM, NBR, FPM, IIR
Operation Pneumatic, manual, electric, solenoid
Suitable temperature ≤80℃
Pressure PN10,PN16, 150LB, 10K

Related Products


Company Information

LIANKE VALVE CO.,LTD  started  since 1982, manufacturing and supplying strainers,pinch valves,lined valves with CE certification, providing the company's customers with access to qualified products and an ISO 9001:2015 quality level resulting in approved valves and strainers in the market.



Pinch Valves are cost effective solutions for abrasive and corrosive installations in industrial process plants.

Strainers are effective solution for the mechanical removal of unwanted solids, or removing impurities in the medium to protect the normal use of valves and equipment.

Fluorine lined valves are suitable for chemical and corrosion resistant conditions.





Product range :

1) Pinch valves

2) Fluorine lined valves

3) Strainers (Y type strainer, basket strainer, duplex basket strainer, T type strainer, bag strainer, etc.)



Application scope :

 abrasive or corrosive slurries, muddy sediment, silty  liquid powders or coarse substances, irrigation, paper coating, refining, petroleum, chemical industry, metallurgy, electricity, medicine, chemical fertilizer, phosgene (highly toxic), wastewater treatment, etc .

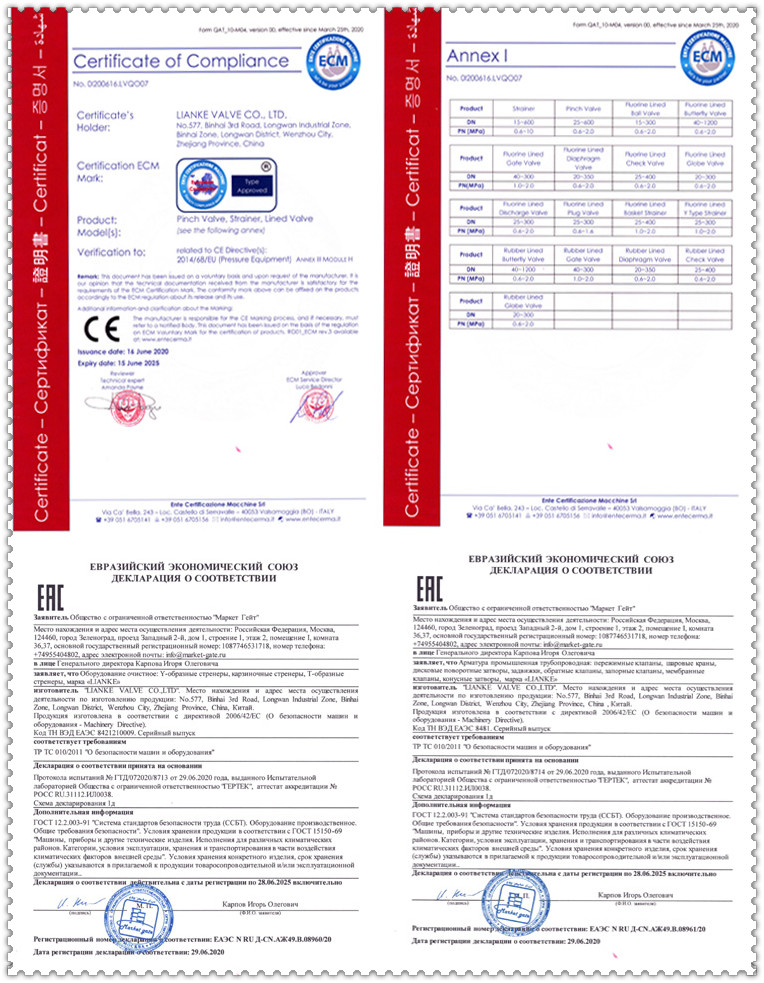

Certificate
