Pneumatic pinch valve

Pneumatic pinch valve

Pneumatic pinch valve

Material
Aluminium alloy
Pressure
Low Pressure
Lead_Time
1 - 10(Pieces):20(days),>10(Pieces):Negotiable(days)
shipping
Sea freight
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Type:Gas Appliance Isolation Shut-Off Valves
Place of Origin:Zhejiang, China
Brand Name:Lianke
Model Number:GJ841X-I
Application:chemical,petroleum,medicine,fertilizer,colliery etc
Temperature of Media:85
Power:Pneumatic
Media:Slurry, Ore pulp, Dry and Wet type dust, Solid liquid, fertilizer
Port Size:DN25-DN300
Structure:Shutoff
Standard or Nonstandard:Standard
Product name:pneumatic pinch valve
Body material:Aluminium alloy
Standard:API, DIN, JIS, GB
Sleeving:natrual rubber, EPDM, neoprene, butyl rubber
Connection:Flange Ends
Certificate:ISO9001:2008 TS
keyword:pinch valve
Product Description

Pneumatic pinch valve















1-       Main part

Body of valve,Rubber of sleeving,Bonnet etc.

2-       Working principle

When closing the pneumatic system, the space of between sleeving and body connect with air, The sleeving bear the liquid pressure to be in a state of tension outward. Because of inside of the sleeving has reinforced cloth to keep the pressure balance, so the length of sleeving and diameter won't been changed by the liquid pressure. When the medium come into the space of between sleeving and body, sleeving will cut off the liquid in under of medium pressure.

3-       Installation and Maintenance

A.      We could install the valve in any part of the pipeline, don't limit the flowing of the medium

B.      Maintenance cost is very low,only need change the rubber of sleeving according to using condition.

4-       Suitable medium: ,Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid, granular fertilizer etc.                Special for ore plant,chemical plant,Power plant,Sewage treatment plant etc.

                  Suitable temperature:≤85℃





5-Technical requirements



Size (DN)

Working pressure

Control pressure

Max differential pressure

Material sleeving

Suitable temp.

DN40-200

Max4bar

Max6bar

2bar

NB

-5~85℃

DN250-300

Max3bar

Max4.5bar

1.5bar

EPDF

-5~120℃

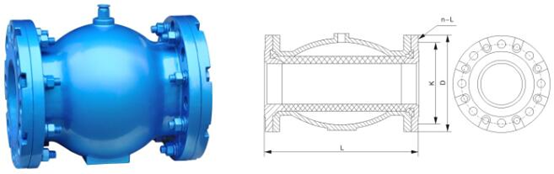

6-       Connection size(mm)

Size (DN)

L

H

D

K

n-L

40

150

40

145

110

4-18

50

1 80

60

160

125

4-18

65

1 80

60

180

145

4-18

80

220

75

195

160

4-18

100

280

95

215

180

8-18

125

345

120

245

210

8-18

150

414

145

280

240

8-23

200

550

182

335

295

8-23

250

680

229

390

350

12-23

300

820

278

440

400

12-23

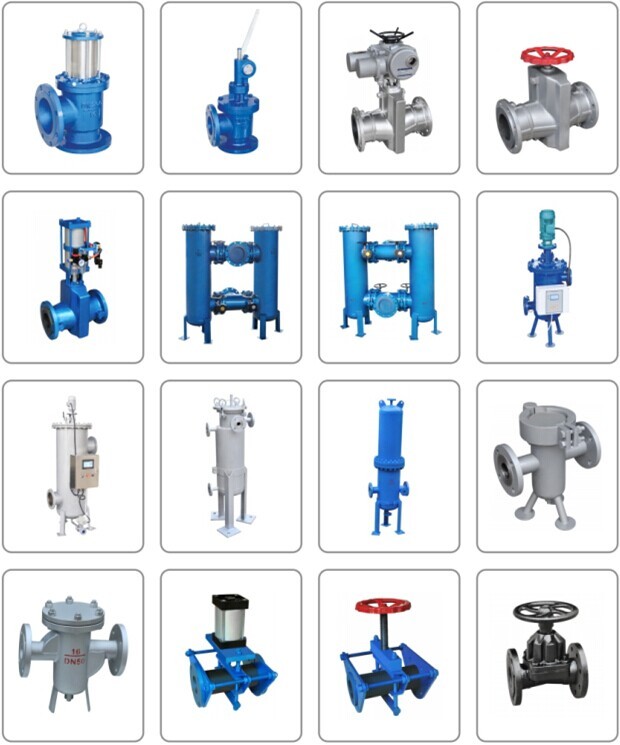

7-   Related Products:









Company Information





Certificate





History Show

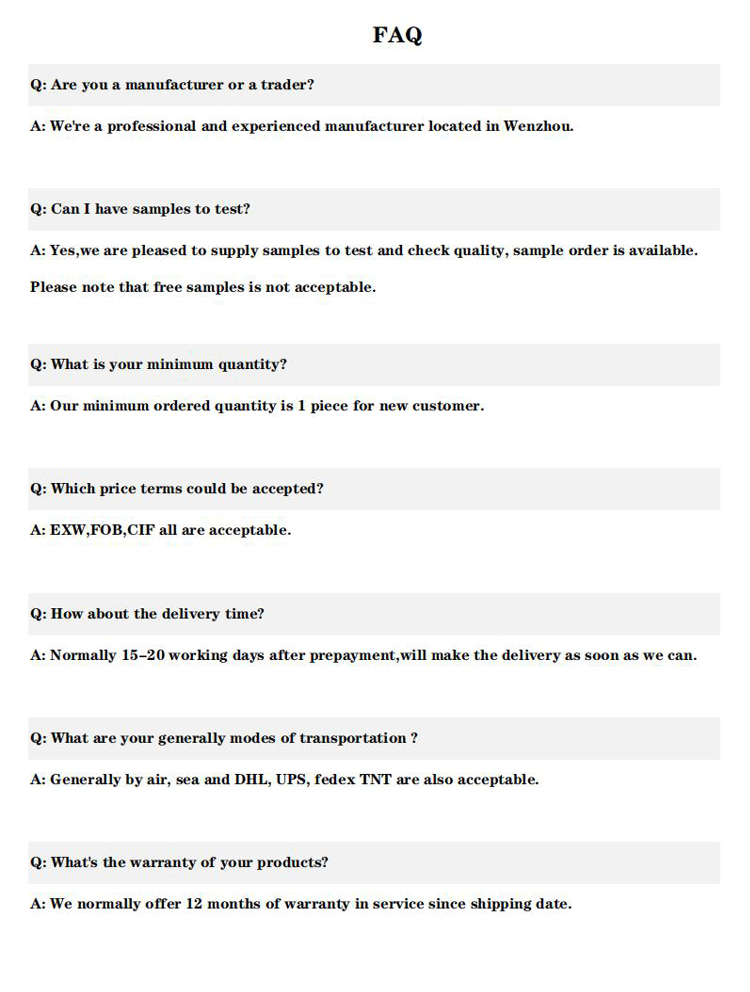

FAQ
