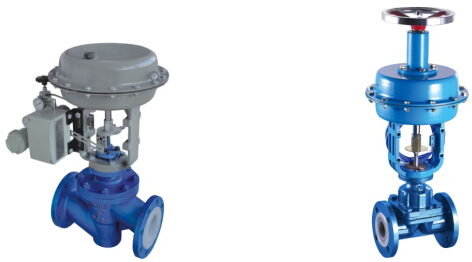

Pneumatic fluorine lining control valve
Brief:
The component of Pneumatic fluorine lining control valve is pneumatic spring film,low flow resistance,straight through single seat control element or no packing and convenience maintenance of diaphragm valve. In the inner of the valve has been coated by the anti-corrosion material (F46,F4,PFE etc). It completely cut off the fluid touching with the valve. The valve can anti-acid,anti-salt,anti-alkaline etc corrosion medium and work in the leak strictly environment, it is the ideal of automatic control products in the chemical pipeline.

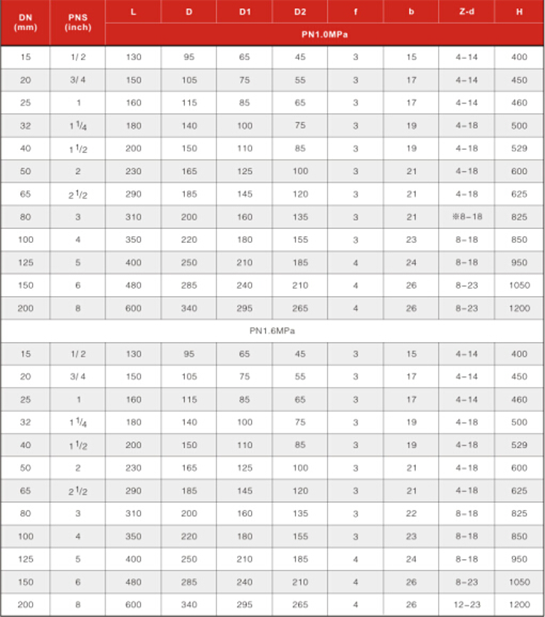

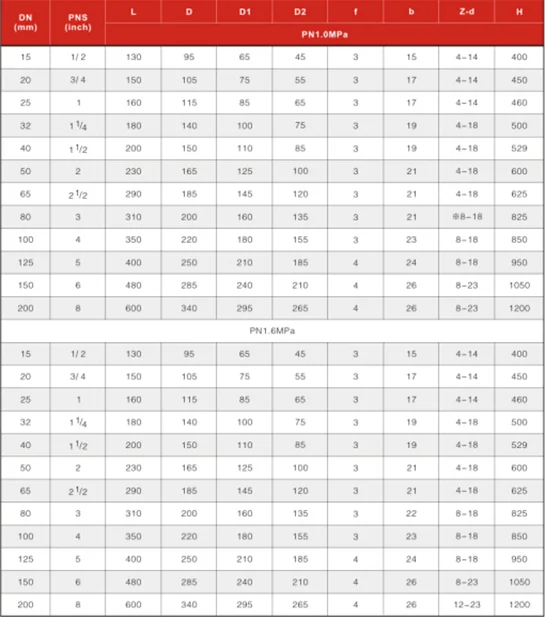

Design standard | API DIN JIS GB |
Material of body | QT400 WCB SS |
Material of lining | FEP(F46) PTFE(F4) PE F PFA |
Material of trim | WCB FEP Hastelloy Monel |
Suitable medium | Acid,Salt,Alkaline,organic solvent etc |
Suitable temperature | -20℃~180℃ |
Nominal pressure | 0.6~2.5MPa Class 150LB |
