lined diaphragm valve

Home  > lined diaphragm valve  >

pneumatic FEP lined diaphragm control valve

pneumatic FEP  lined diaphragm control valve

pneumatic FEP lined diaphragm control valve

Size
DN20-DN200
Material
Ductile Iron,cast iron,cast steel, stainless steel
Pressure
Medium Pressure
Lead_Time
1 - 10(Pieces):20(days),>10(Pieces):Negotiable(days)
shipping
Sea freight
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Type:Water Regulating Valves
Place of Origin:Zhejiang, China
Brand Name:Lianke
Model Number:G41F46
Application:Petorleum,Chemical,Medicine,Fertilizer,Food and corrosive medium.
Temperature of Media:≤180℃
Power:Manual
Media:water, oil, acid and corrosion medium
Port Size:DN15-DN300
Structure:Diaphragm
Name:pneumatic FEP lined diaphragm control valve
Standard:API, DIN, JIS, GB
Connection:Flange
Certificate:ISO9001:2008 TS,CE,API
Feature:Anti-corrosion,Simple structure,Sealing feature is good.
Lined material:PTFE FEP PFA PO FRPP
type:ptfe / pfa / fep lined
keywords:diaphragm valve
operation:Pneumatic Operator
size:DN20-DN200
Video Description

pneumatic FEP  lined diaphragm control valve

Product Description

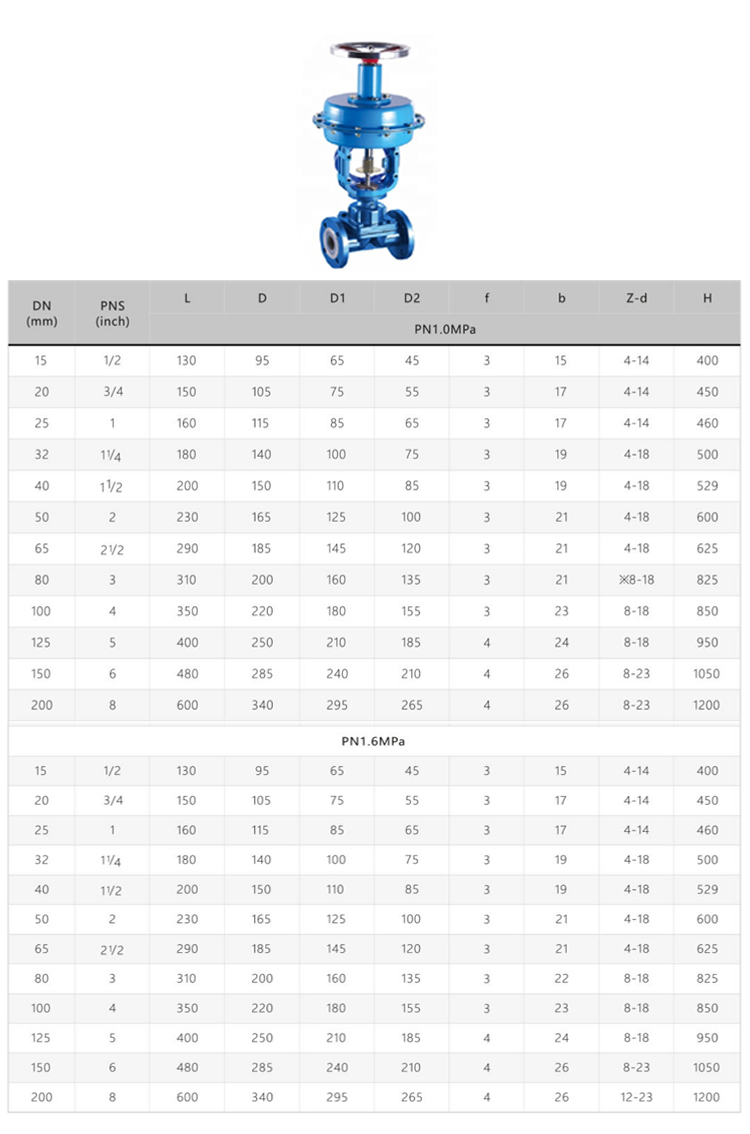

Product details

Body material Ductile Iron,cast iron,cast steel, stainless steel
Standard API, DIN, JIS, GB
Connection Flange
Certificate ISO9001:2008 TS,CE,API
Application Petorleum,Chemical,Medicine,Fertilizer,Food and corrosive medium.
Function diaphragm.
Feature Anti-corrosion,Simple structure,Sealing feature is good.
Lined material PTFE FEP PFA PO FRPP
Suitable temperature ≤180℃
Related Products

Company Information

LIANKE VALVE CO.,LTD  started  since 1982, manufacturing and supplying strainers,pinch valves,lined valves with CE certification, providing the company's customers with access to qualified products and an ISO 9001:2015 quality level resulting in approved valves and strainers in the market.



Pinch Valves are cost effective solutions for abrasive and corrosive installations in industrial process plants.

Strainers are effective solution for the mechanical removal of unwanted solids, or removing impurities in the medium to protect the normal use of valves and equipment.

Fluorine lined valves are suitable for chemical and corrosion resistant conditions.





Product range :

1) Pinch valves

2) Fluorine lined valves

3) Strainers (Y type strainer, basket strainer, duplex basket strainer, T type strainer, bag strainer, etc.)



Application scope :

Abrasive or corrosive slurries, muddy sediment, silty  liquid powders or coarse substances, irrigation, paper coating, refining, petroleum, chemical industry, metallurgy, electricity, medicine, chemical fertilizer, phosgene (highly toxic), wastewater treatment, etc .

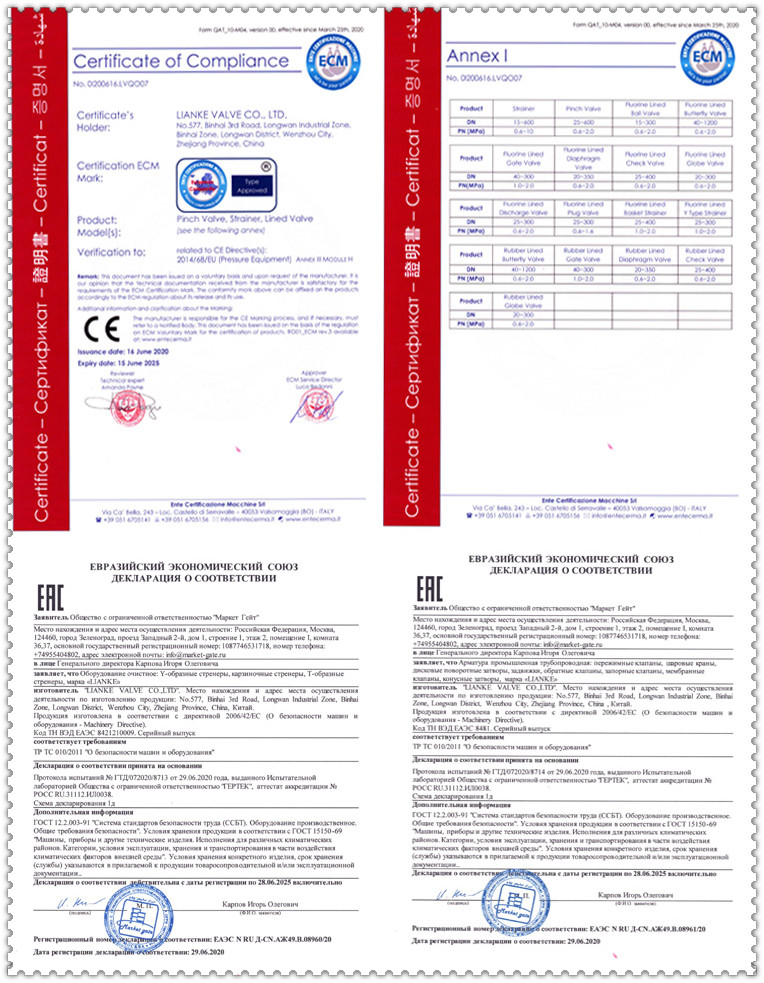

Certificate


History show

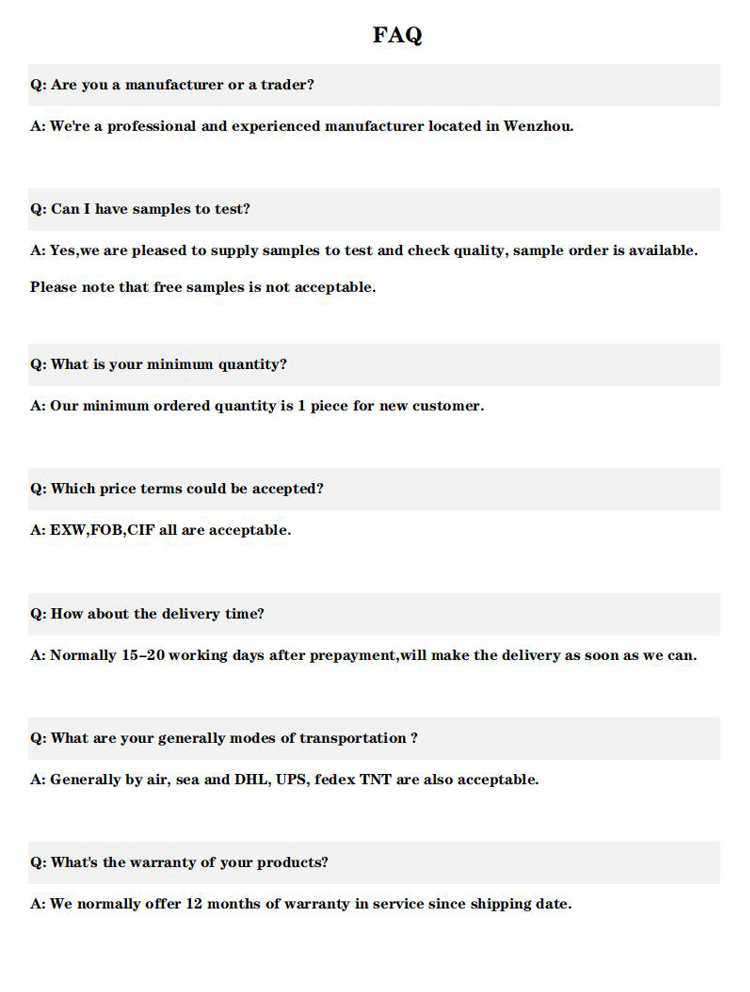

FAQ
