MANUAL SLEEVING IN OUTSIDE OF PINCH VALVE (GJ41X-6L)
Body material | Aluminium alloy,Ductile Iron,cast iron,cast steel,wcb, stainless steel |
Sleeve | Natural rubber, EPDM, NBR, FPM, IIR |
Pressure | PN10, PN16, 150LB, 10K |
Suitable temperature | ≤80℃ |
Medium | Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid and corrosive medium. |
Operation | manual, pneumatic, electric |
Standard | API, DIN, BS, JIS, GB |
Certificate | ISO9001:2008 TS,CE,API |
MOQ/Payment | 1Pc/ TT or LC |
4- Functions of Manual Pinch Valves and advantages:
A. Pinch valves can be used for On/Off, as well as throttling services
B. Pinch valves are ideal for on/off services because of their straight through design that allows for uninhibited flow
C. Straight through designs also have very little pressure drop between the inlet and outlet.
D. The effective throttling range of a pinch valve is usually between 10% and 95% of the rated flow capacity
E. Low maintenance
F. Low weight and easy operation
G. Easy changing the rubber sleeving and don't need stock other parts except the rubber sleeving.

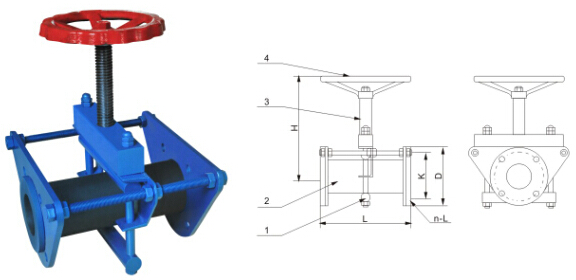

Connection size (MM)
Size (DN) | L | H | D | K | n-L |
50 | 210 | 215 | 160 | 125 | 4-18 |
65 | 250 | 245 | 180 | 145 | 4-18 |
80 | 300 | 270 | 195 | 160 | 4-18 |
100 | 350 | 300 | 215 | 180 | 8-18 |
125 | 430 | 340 | 245 | 210 | 8-18 |
150 | 500 | 390 | 280 | 240 | 8-23 |
200 | 650 | 520 | 335 | 295 | 12-23 |
250 | 800 | 615 | 390 | 350 | 12-23 |
300 | 950 | 720 | 440 | 400 | 12-23 |
350 | 830 | 800 | 500 | 460 | 16-23 |
400 | 900 | 900 | 565 | 575 | 16-25 |
500 | 1100 | 1150 | 670 | 620 | 20-25 |
Lianke valve Co.,Ltd fomerly called Wenzhou city yongzhong chemical machinery plant,founded in 1982 year, the core products are Pinch Valve, Fluorine Lined Valve & Strainer. We successively qualified by the API, CE, ISO, TS certification. Strictly according to the API,DIN,JIS,GB standard to produce the products. Becuase of the quality is very steady and competitive advantage price, our products has been accepted by the Europe, America, South africa, Middle east, South america & Southeast asia. Do hope more and more clients establish long term and steady business relations with us to achieve mutual profit.
