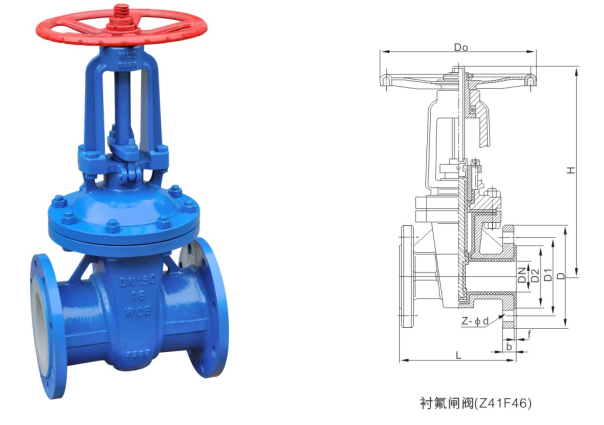

Fluorine lining gate valve (Z41F46)
Gate valves is an open/close a gate, direction and perpendicular to the direction of flow of the gate valve can only be fully open and close.The fluorine lining gate valve can meet the strong corrosion medium and anti-abrasive.
Main parts and materials
Part name | Cast iron,Cast steel,Stainless steel,Lining/F4,F46,PFA |
Body & Cover | Cast steel,Stainless steel,Lining/F4,F46,PFA |
Disc | 2Cr13,Stainless steel |
Stem | F4,F46,PFA |
Packing | F4,F46,PFA |
Hand wheel | Qt400 |
Fluorine lining gate valve standard
Design standard | GB/T12234 |
Structure length | GB/T12221 ,ASME B16.10 |
Flange standard | HG20592-97,ANSI B16.5a |
Nominal pressure | 0.6,1.0,1.6,2.5MPa,Class150 |
Pressure test | GB/T13927,API598 |
Drive mode | Manual,Electric,Pneumatic |
Fluorine lining property
| Application temperature | Application medium |
PTFE(F4) | ≤200℃ | Organic solvent,inorganic acid,alkaline,arene,chlorinated hydrocarbon,strong acid,grease etc. |
FEP(F46) | ≤150℃ | Organic solvent,inorganic acid,alkaline,arene,chlorinated hydrocarbon,strong acid,grease etc. |
PFA | ≤180℃ | Organic solvent,strong alkaline,strong acid,strong fluridizer etc. |
The main connection size
DN (mm | PNS (Inch) | L | D | D1 | D2 | f | b | Z-Φd | Do | H |
PN1.0MPa/1.6MPa | ||||||||||
25 | 1 | 160 | 115 | 85 | 65 | 3 | 17 | 4-14 | 160 | 230 |
32 | 1-1/4 | 180 | 140/135 | 100 | 75 | 3 | 19 | 4-18 | 160 | 245 |
40 | 1-1/2 | 240 | 150/145 | 110 | 85 | 3 | 19 | 4-18 | 180 | 285 |
50 | 2 | 250 | 165/160 | 125 | 100 | 3 | 21 | 4-18 | 200 | 300 |
65 | 2-1/2 | 270 | 185/180 | 145 | 120 | 3 | 21 | 4-18 | 250 | 340 |
80 | 3 | 280 | 200/195 | 160 | 135 | 3 | 21 | 8-18 | 280 | 410 |
100 | 4 | 300 | 220/215 | 180 | 155 | 3 | 23 | 8-18 | 300 | 465 |
125 | 5 | 325 | 250/245 | 210 | 185 | 4 | 24 | 8-18 | 320 | 620 |
150 | 6 | 350 | 285/280 | 240 | 210 | 4 | 26 | 8-23 | 350 | 710 |
200 | 8 | 400 | 340/335 | 295 | 265 | 4 | 26 | 8-23 | 450 | 780 |
250 | 10 | 450 | 395/390 | 350 | 320 | 4 | 28 | 12-23 | 500 | 1000 |
Lianke valve Co.,Ltd fomerly called Wenzhou city yongzhong chemical machinery plant,founded in 1982 year, the core products are Pinch Valve, Fluorine Lined Valve & Strainer. We successively qualified by the API, CE, ISO, TS certification. Strictly according to the API,DIN,JIS,GB standard to produce the products. Becuase of the quality is very steady and competitive advantage price, our products has been accepted by the Europe, America, South africa, Middle east, South america & Southeast asia. Do hope more and more clients establish long term and steady business relations with us to achieve mutual profit.
