Flange air operated pneumatic pinch valve

Flange air operated pneumatic pinch valve

Flange air operated pneumatic pinch valve

Size
DN40-DN300
Material
Aluminium alloy,Ductile Iron,cast iron,cast steel,wcb, stainless steel
Pressure
Medium Pressure
Lead_Time
1 - 10(Pieces):20(days),>10(Pieces):Negotiable(days)
shipping
Sea freight
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Type:BALL VALVES, Stop & Waste Valves, Butterfly Valves
Place of Origin:Zhejiang, China
Brand Name:Lianke
Model Number:GJ841X-II
Application:Petorleum,Chemical,Medicine,Fertilizer,Food and corrosive medium.
Temperature of Media:≤80℃
Power:Pneumatic
Media:Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid
Port Size:DN25-DN300
Structure:Shutoff
Product name:Flange air operated pneumatic pinch valve
Body material:Aluminium alloy,Ductile Iron,cast iron,cast steel,wcb, stainless steel
Sleeve material:Natural rubber, EPDM, NBR, FPM, IIR
Medium:Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid
Temperature:≤80℃
Standard:ANSI, BS, DIN, JIS, GB
Certificate:ISO9001:2008 TS,CE,API
Size:DN40-DN300
Video Description

Flange air operated pneumatic pinch valve

Product Description

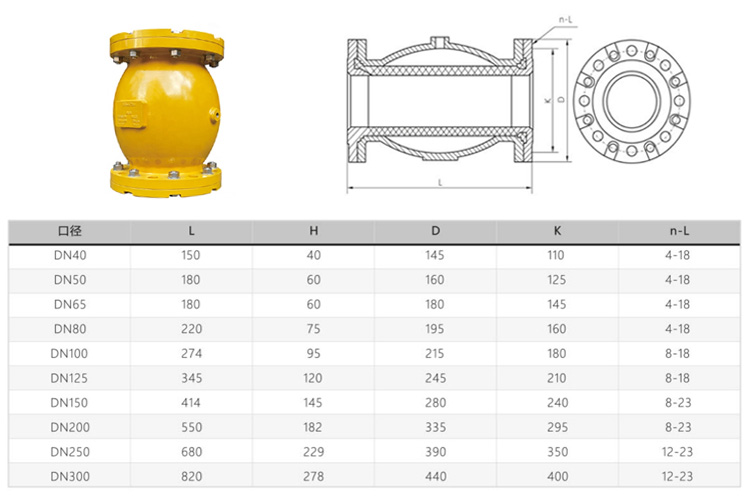

Product details

Body material

Aluminium alloy,Ductile Iron,cast iron,cast steel, stainless steel

Sleeved

Natural rubber, EPDM, NBR, FPM, IIR

Medium

Slurry, Ore pulp, Abrasive, Dry and Wet type dust, Solid liquid

Suitable temperature

≤80℃

Pressure

PN10,PN16,150LB, 10K

Standard

API, BS, DIN, JIS, GB

MOQ

1PC

Lead time

7days

Payment

TT or LC

Related Products


Company Information

LIANKE VALVE CO.,LTD  started  since 1982, manufacturing and supplying strainers,pinch valves,lined valves with CE certification, providing the company's customers with access to qualified products and an ISO 9001:2015 quality level resulting in approved valves and strainers in the market.



Pinch Valves are cost effective solutions for abrasive and corrosive installations in industrial process plants.

Strainers are effective solution for the mechanical removal of unwanted solids, or removing impurities in the medium to protect the normal use of valves and equipment.

Fluorine lined valves are suitable for chemical and corrosion resistant conditions.





Product range :

1) Pinch valves

2) Fluorine lined valves

3) Strainers (Y type strainer, basket strainer, duplex basket strainer, T type strainer, bag strainer, etc.)



Application scope :

 abrasive or corrosive slurries, muddy sediment, silty  liquid powders or coarse substances, irrigation, paper coating, refining, petroleum, chemical industry, metallurgy, electricity, medicine, chemical fertilizer, phosgene (highly toxic), wastewater treatment, etc .

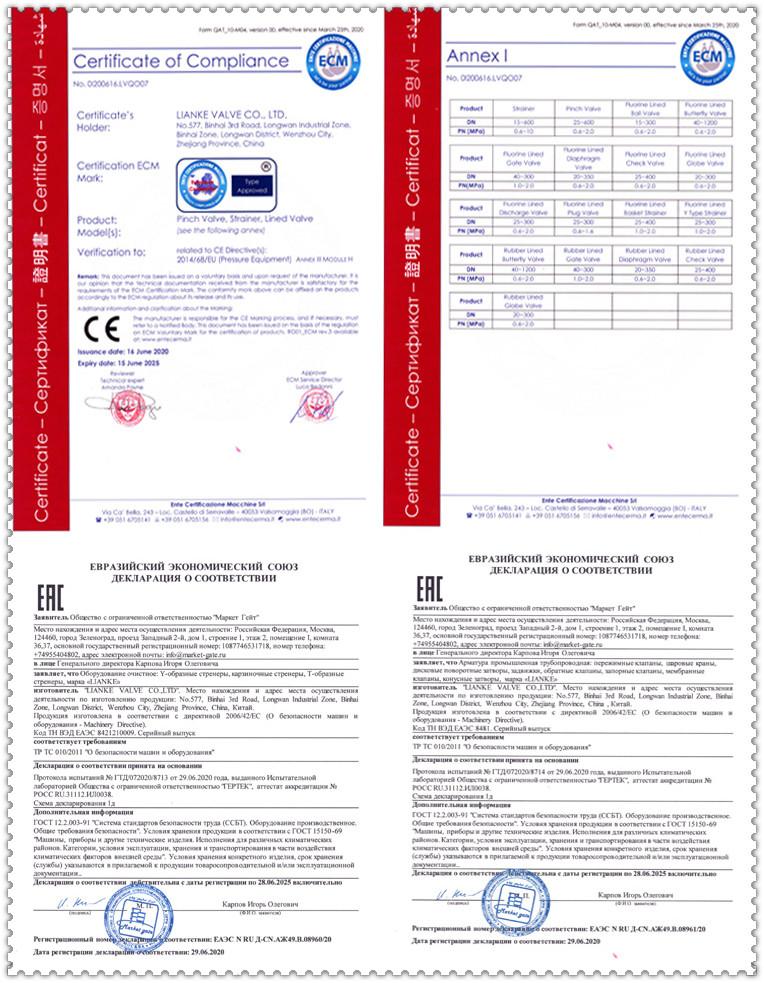

Certificate
