When to Use a T Strainer in Steam or High-Pressure Systems

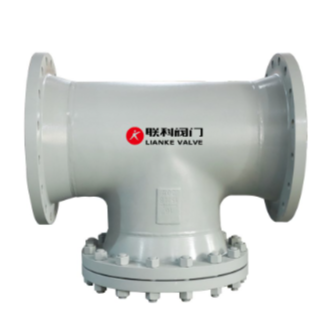

A Colador tipo T is a reliable equipment used to safeguard steam and high-pressure systems. Filtering out unwanted particles before they reach critical equipment helps maintain stable and efficient operation.

Knowing when to install a T type strainer and how to choose and set it up correctly can make all the difference in preventing costly system failures.

When to Use a T Type Strainer

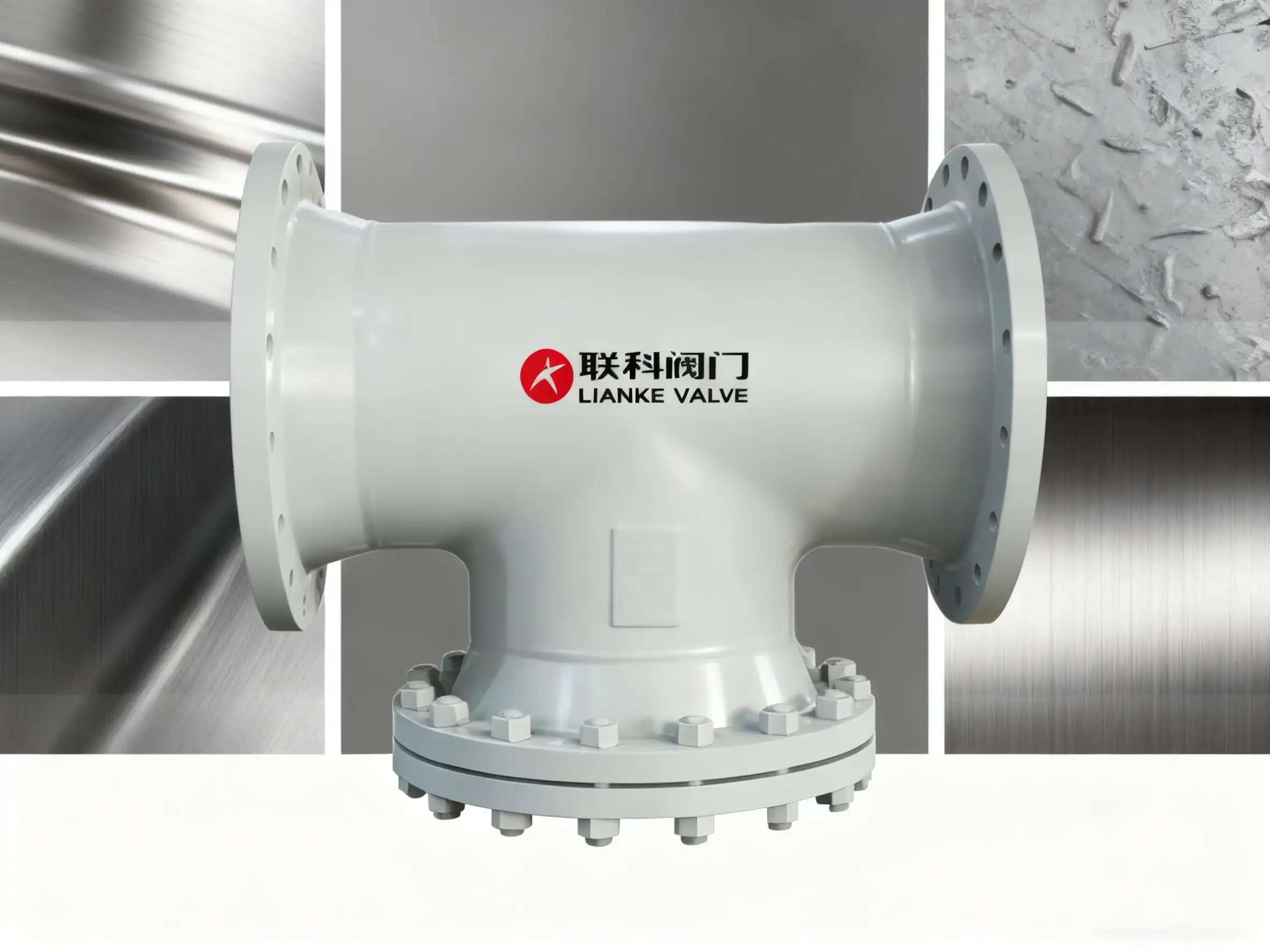

A Colador en T is ideal when durable filtration is needed without causing major flow interruptions. In particular:

Operating Condition	Why a T-Type Strainer Works Best
High-pressure pipelines	Its reinforced body and compact design can handle pressure surges without deformation and prevent excessive pressure drops.
Sistemas de vapor	It captures unwanted solid particles that could damage equipment.
Continuous Operation	Since the screen is accessible without removing the entire unit, it allows inline maintenance with minimal downtime.
Tight Space or Horizontal Flow	The “T” shape fits neatly into horizontal runs or compact mechanical rooms.

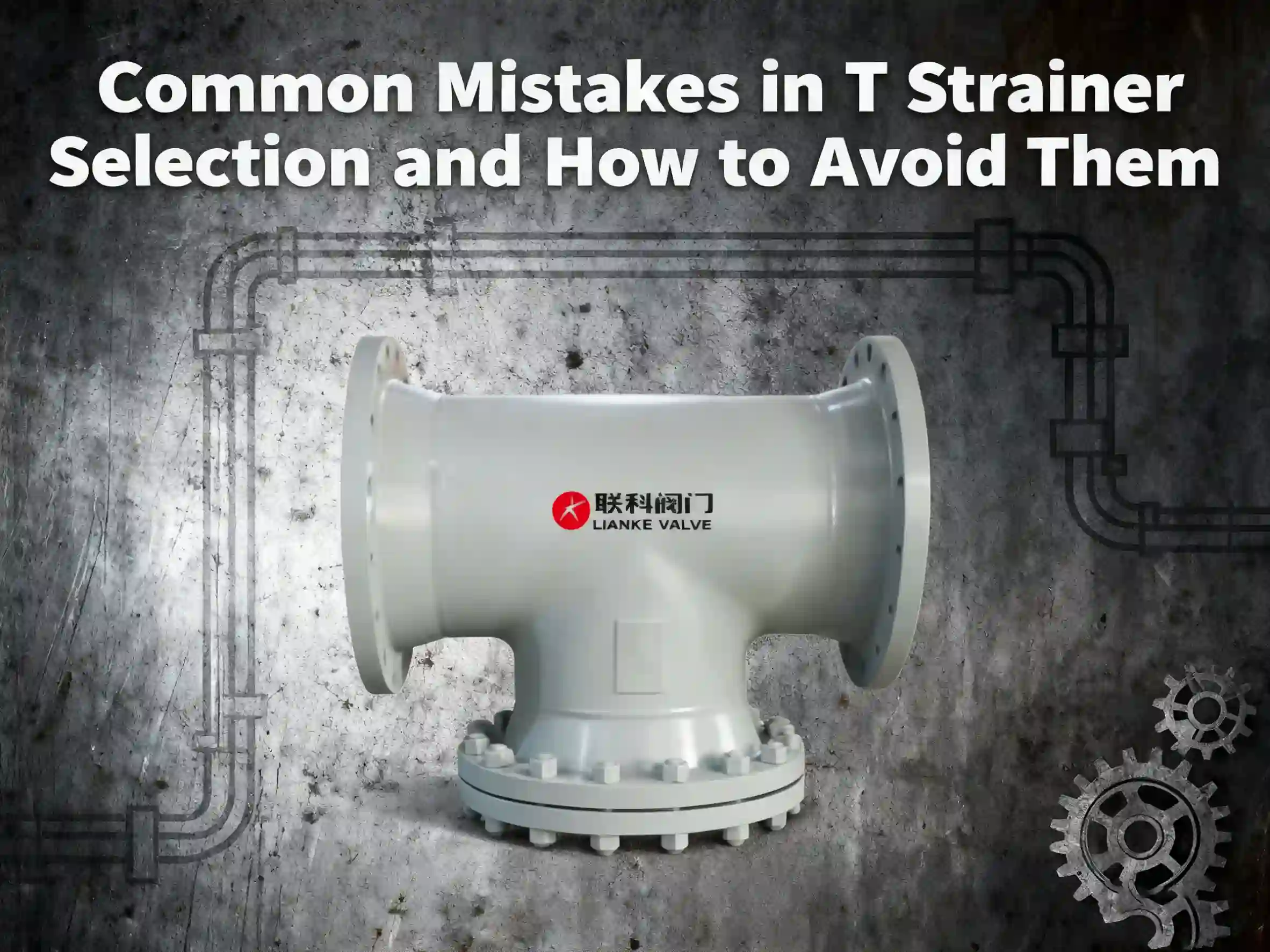

Mistakes to Avoid When Choosing a T Strainer

Below are some of the most common T strainer selection errors operators can make, as well as what to do about them. It can help you avoid mistakes when choosing T strainers for long-term effectiveness.

Mistake	Why It Happens	Impact	What To Do
Underrating mesh capacity	Misjudged particle size or load in fluid flow	Clogging	Choose mesh size based on actual debris size and flow rate.
Too restrictive or too coarse mesh screen size	Selecting an incorrect mesh size	Poor filtration	Choose a mesh size based on system requirements.
Wrong end connections	Overlooking compatibility with existing piping standards	Leaks or misalignment	Match the strainer’s connection type and pressure class to the existing pipeline
Ignoring flow rate	Skipping flow calculations before selection	Pressure loss or turbulence	Verify values and ensure flow remains within recommended limits
Using the wrong material	Neglecting the chemical or temperature compatibility of the fluid with the strainer	Corrosion, permanent failure	Select metals suitable for your fluids (like stainless steel for steam or corrosive fluids)
Overlooking the drain plug access	Failing to plan for installation space	Difficult maintenance, downtimes	Plan access space during T type strainer installation.

Tips for Proper T Type Strainer Installation

Here are some suggestions you can consider:

• Position the strainer where debris naturally collects.
• Always keep the blow-off or drain ports accessible.
• Install pressure gauges upstream and downstream to monitor pressure drops and clogging.
• Tighten flange bolts in sequence for even sealing.

Preguntas frecuentes

1. What is the best material for steam systems?

Acero inoxidable or carbon steel with high-temperature gaskets is ideal, though it would depend on the system’s specific conditions.

2. How long does a T strainer last in high-pressure setups?

With correct sizing, installation, and maintenance, a high-grade stainless steel T strainer can last up to 10 years or longer.

3. Is a T strainer suitable for both liquid and gas systems?

Yes, but only if the flow conditions, particularly pressure and velocity, are kept within the strainer’s design specifications. 、

Protect Your System With a Quality T Type Strainer

Using a T type strainer can prevent small issues from becoming big headaches in the long run. Understanding various T strainer selection pitfalls and solutions ensures you can make better choices that will fit your specific steam or high-pressure system requirements.

You can upgrade your setup with LIANKE’s wide range of strainers and valves that support diverse industrial needs. Contáctenos hoy to learn more about our product lineup.
